Hydraulic Brake Pipe Routing - Master Cylinder to ABS

Hydraulic Brake Pipe Routing - Master Cylinder to ABS

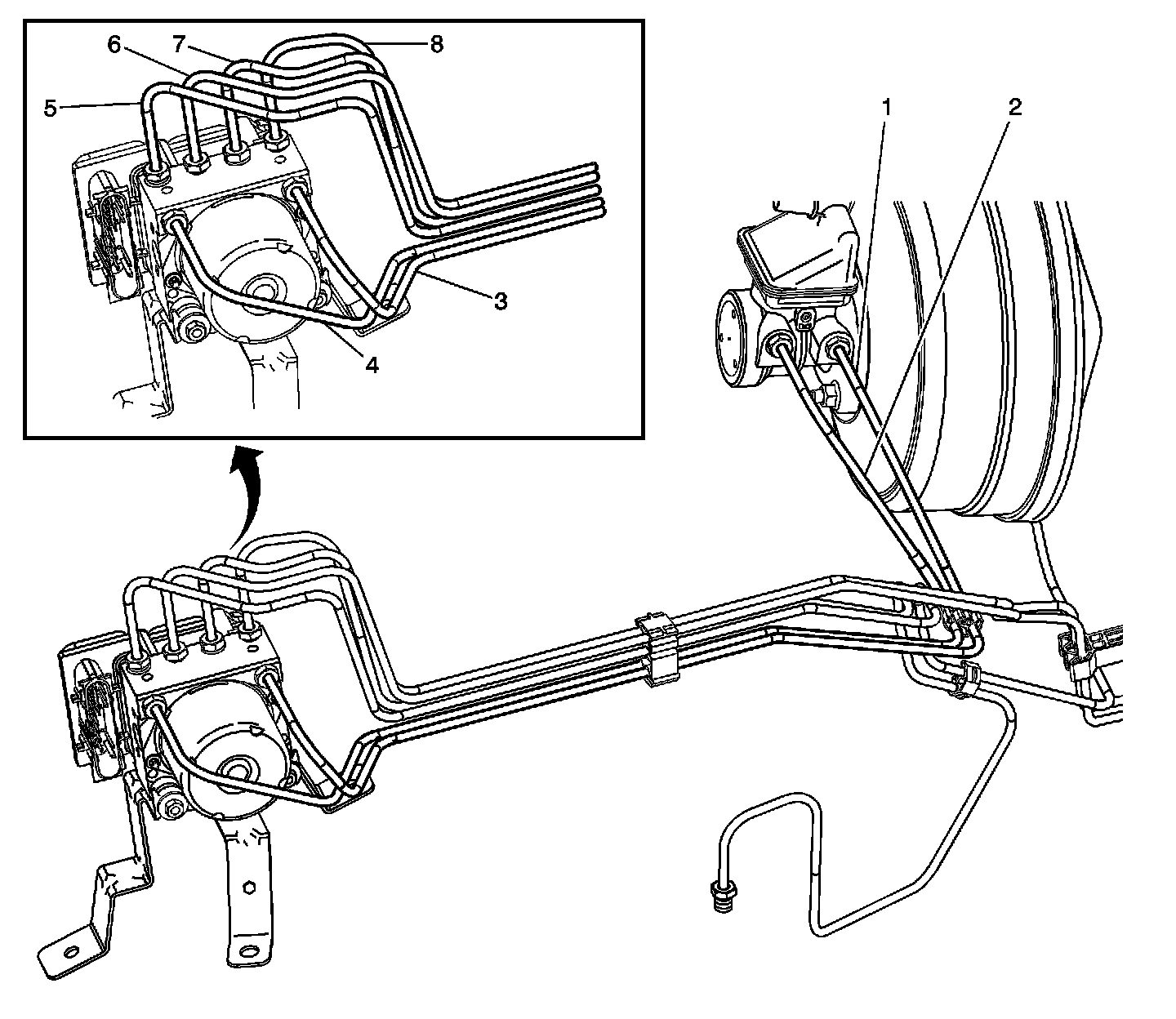

Hydraulic Brake Pipe Routing - Master Cylinder to ABS:

1 - Master Cylinder Primary Brake Pipe
2 - Master Cylinder Secondary Brake Pipe
3 - Master Cylinder Primary Brake Pipe at BPMV
4 - Master Cylinder Secondary Brake Pipe at BPMV
5 - BPMV Brake Pipe to RF Brake Corner
6 - BPMV Brake Pipe to LR Brake Corner
7 - BPMV Brake Pipe to RR Brake Corner
8 - BPMV Brake Pipe to LF Brake Corner
