Backup Lamp Switch: Locations

Lighting Systems Component Views

Rear of the Engine (2.2L)




1 - Backup Lamp Switch (M86)
2 - Engine Coolant Temperature Sensor (ECT)
3 - Heated Oxygen Sensor (HO2S)1
4 - Heated Oxygen Sensor (HO2S)2 Connector

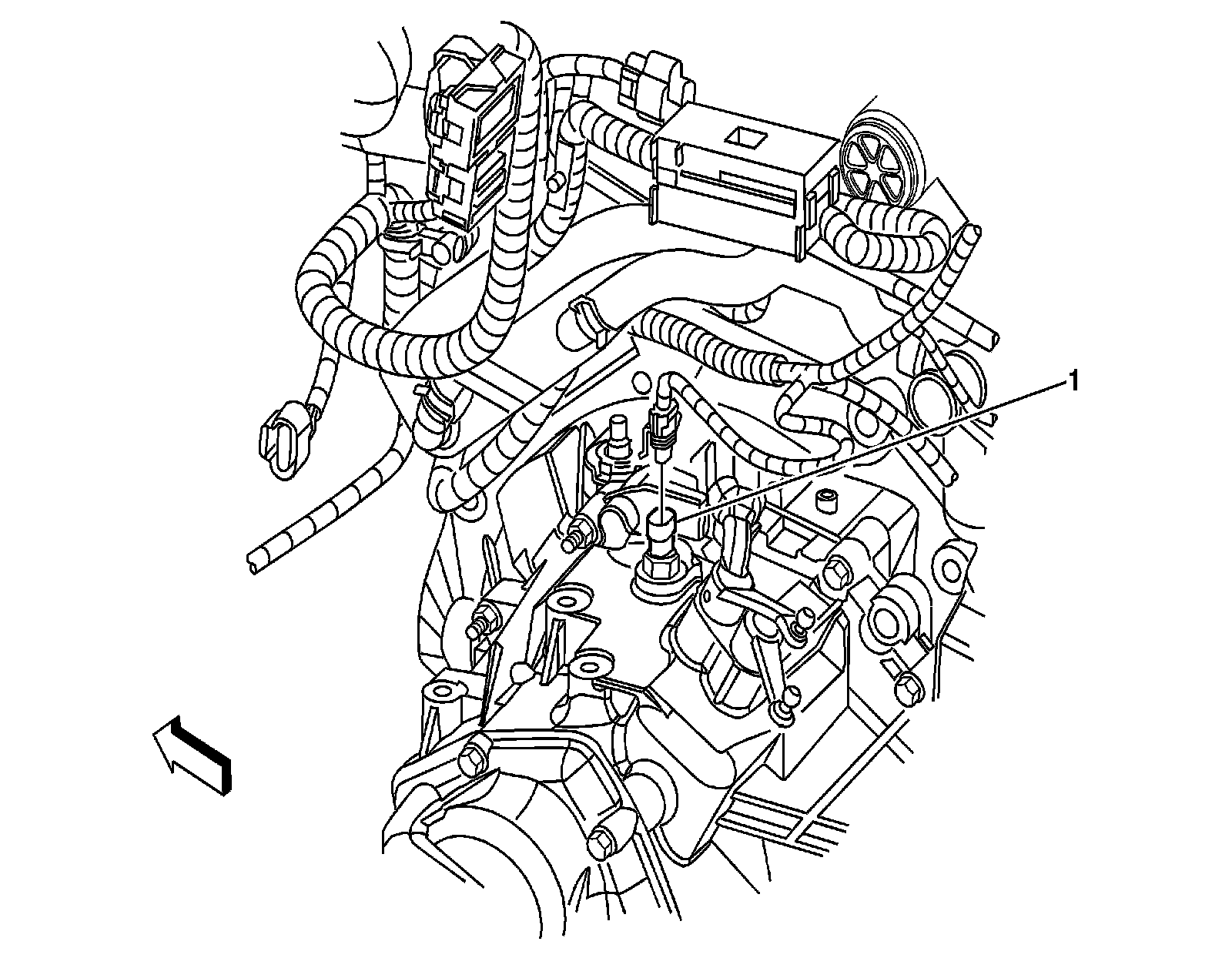

Top of the Transmission (MU3)




1 - Backup Lamp Switch
