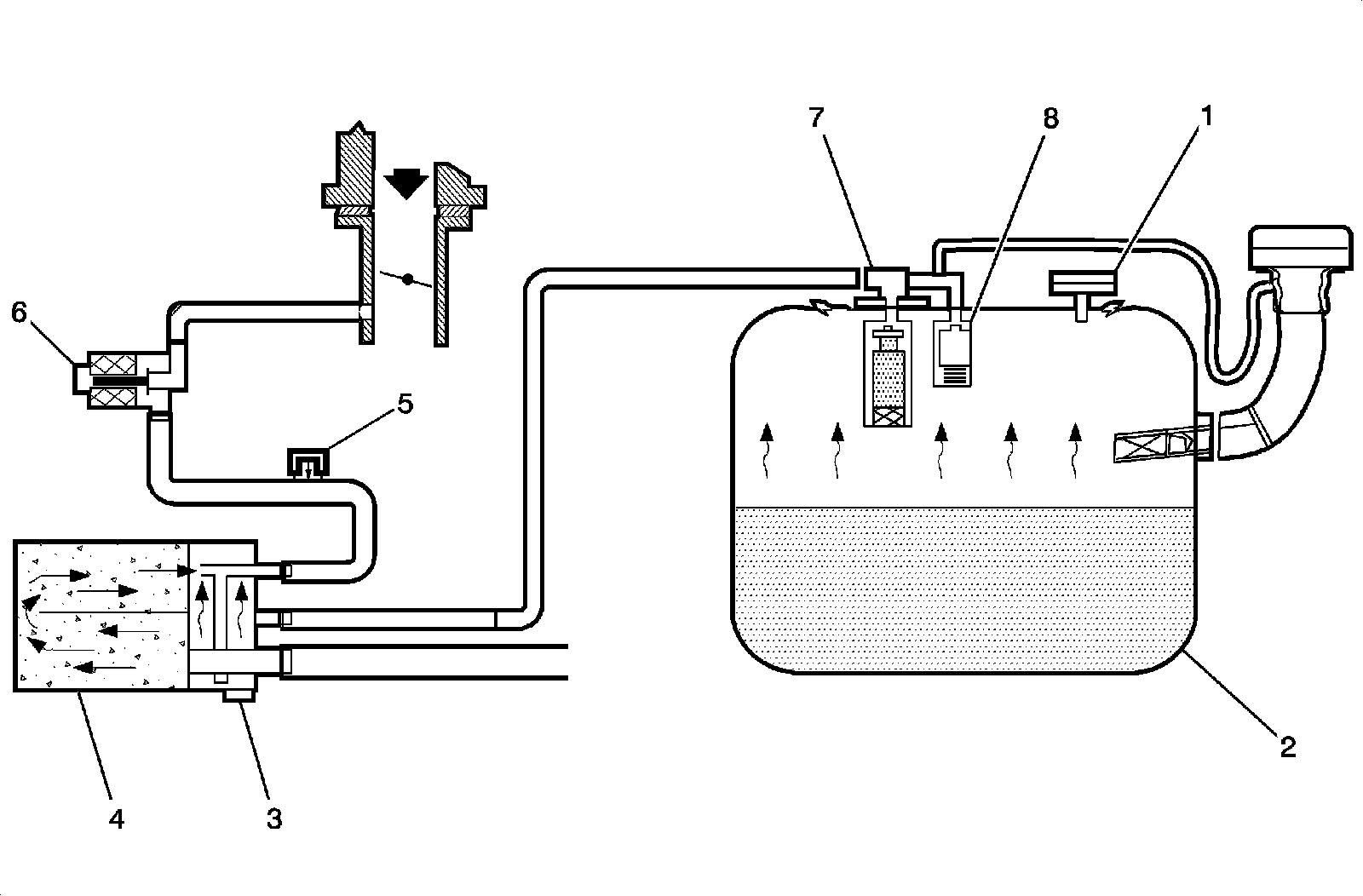

Evaporative Emissions Hose Routing Diagram

Evaporative Emissions Hose Routing Diagram




1 - Fuel Tank Pressure (FTP) Sensor
2 - Fuel Tank
3 - Evaporative Emission (EVAP) Vent Solenoid Valve
4 - EVAP Canister
5 - EVAP Service Port
6 - EVAP Purge Solenoid Valve
7 - Fill Limit Vent Valve (FLVV)
8 - Grade Vent Valve
