Horn Switch: Locations



Horn Component Views

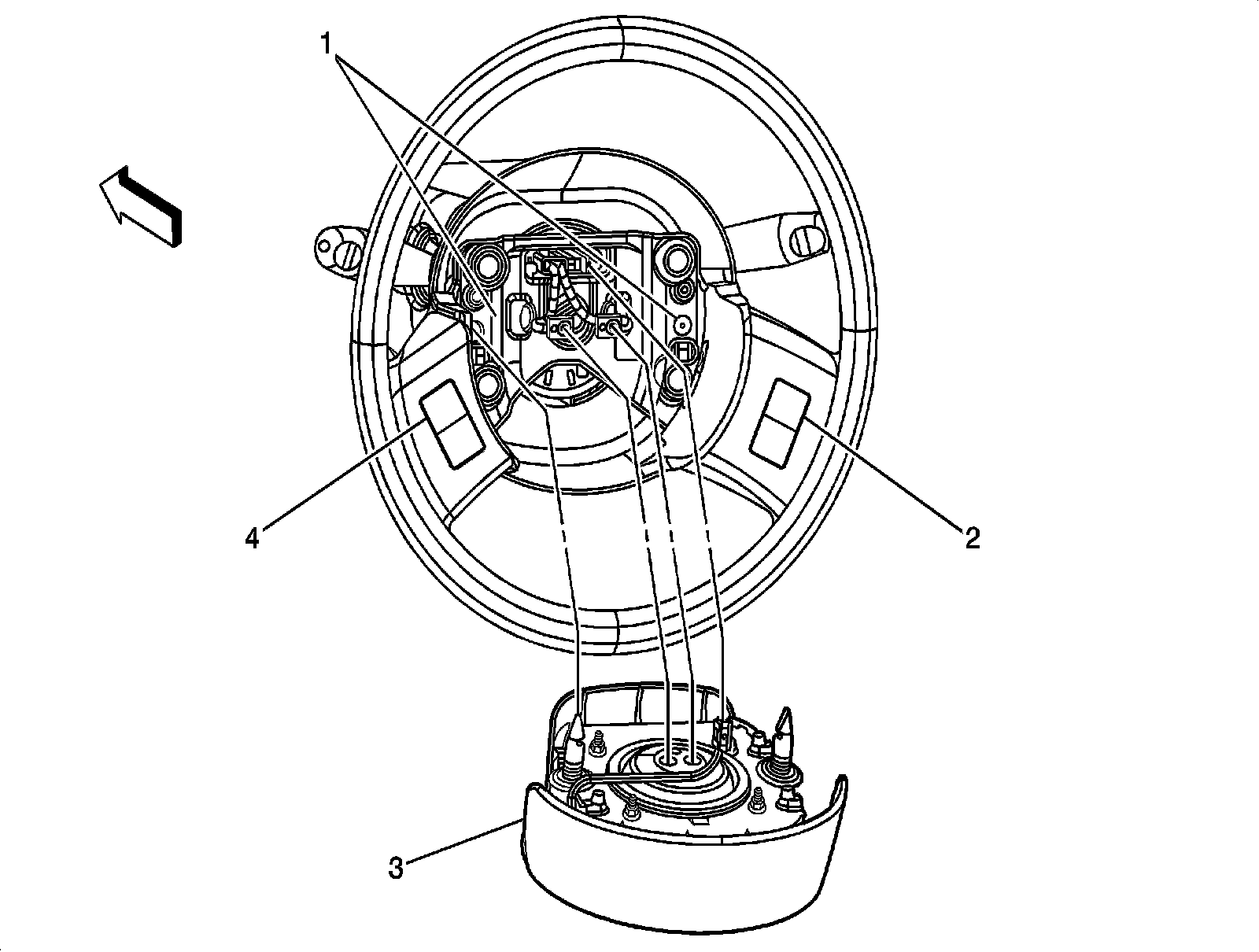

Steering Wheel Assembly




1 - Horn Switch
2 - Steering Wheel Controls - Right (K34)
3 - Inflatable Restraint Steering Wheel Module
4 - Steering Wheel Controls - Left (K34)
