Home >> Saturn >> 2007 >> ION L4-2.2L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Sensors and Switches - Instrument Panel >> Parking Brake Warning Switch >> Locations

Parking Brake Warning Switch: Locations

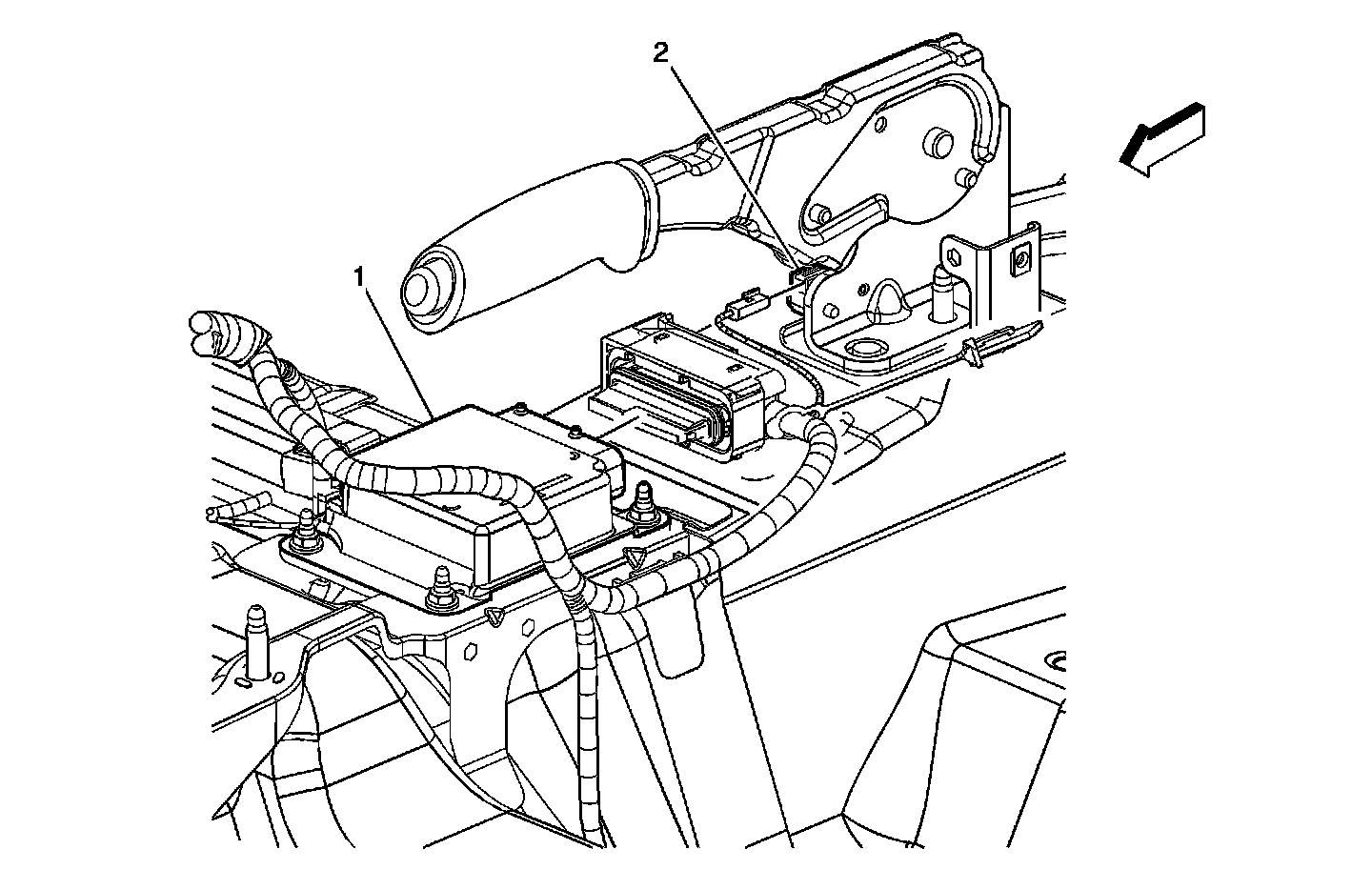

Center Console

Center Console:




1 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
2 - Park Brake Switch
