Evaporative Emission (EVAP) Hoses/Pipes Replacement - Engine

Evaporative Emission Hoses/Pipes Replacement - Engine

Removal Procedure

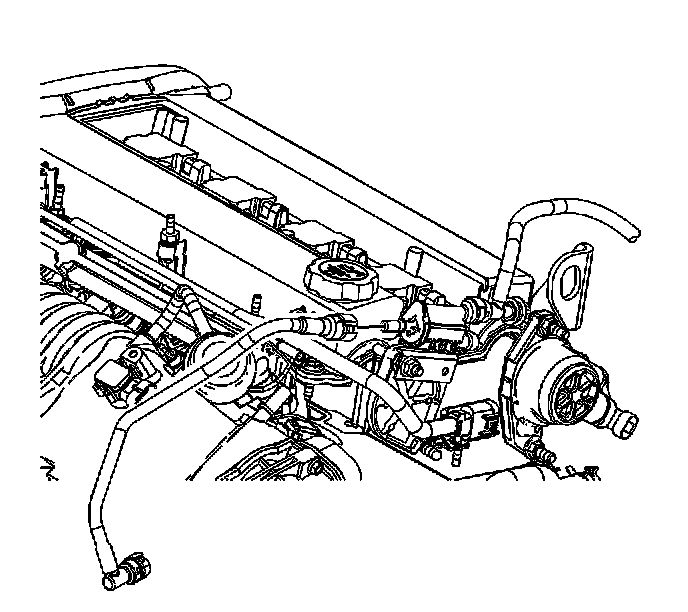

1. Disconnect the engine purge pipe from the evaporative emission (EVAP) canister purge valve.
2. Disconnect the engine purge pipe from the throttle body.
3. Remove the engine purge pipe.

Installation Procedure

1. Position the engine purge pipe to the EVAP canister purge valve and the intake manifold.




2. Connect the engine purge pipe to the throttle body.
3. Connect the engine purge pipe to the EVAP canister purge valve.
