Drive Belt Tensioner: Service and Repair

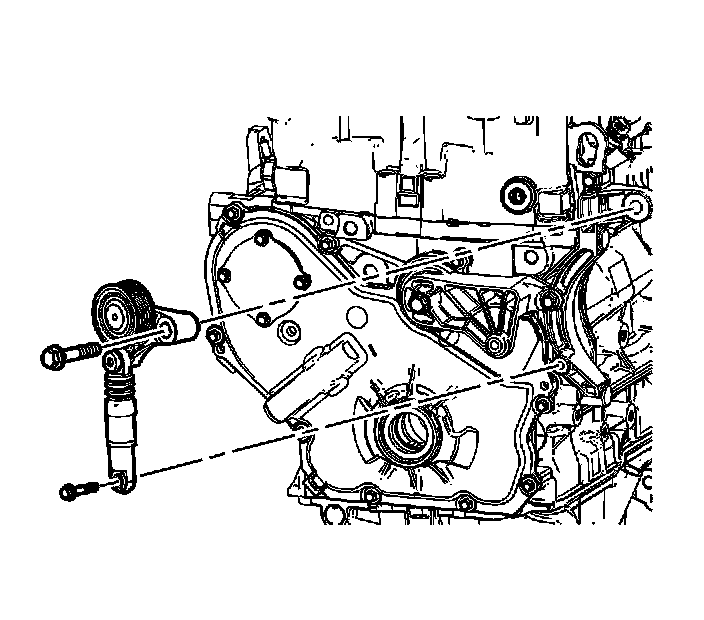

Drive Belt Tensioner Replacement - Supercharger

Removal Procedure

1. Remove the drive belt.




2. Remove the drive belt tensioner bolts.
3. Remove the drive belt tensioner.

Installation Procedure




1. Install the drive belt tensioner.

Notice: Refer to Fastener Notice.

2. Install the drive belt tensioner bolts.

Tighten the drive belt tensioner bolts to 45 N.m (33 lb ft).

3. Install the drive belt.
