Instrument Panel, Gages, and Console Connector End Views

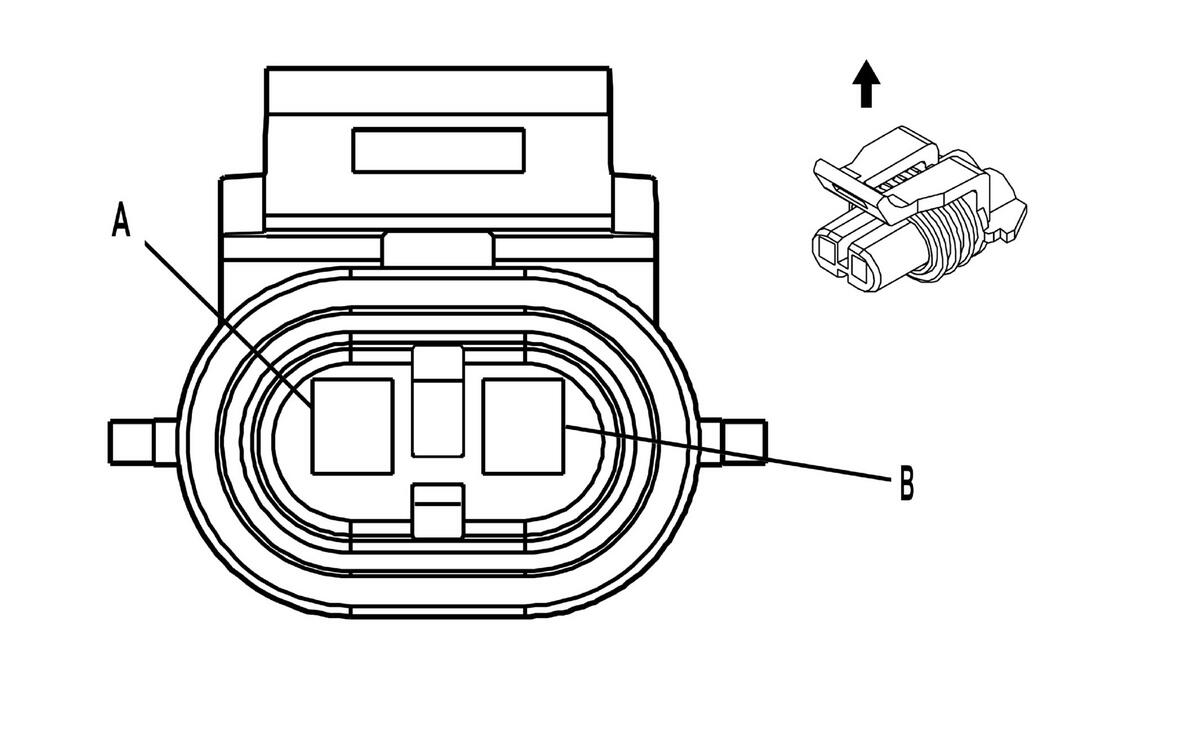

Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052642 2-Way F Metri-Pack 150 Series Sealed (L-GN)
Pin	Wire Color	Circuit No.	Function
A	L-GN/BK	735	Ambient Air Temperature Sensor Signal
B	GY	720	Low Reference

Engine Oil Pressure (EOP) Switch (L61)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12065299 1-Way F Metri-Pack 150 Series Sealed (GY)
Pin	Wire Color	Circuit No.	Function
A	TN/BK	231	Oil Pressure Switch Signal

Engine Oil Pressure (EOP) Switch (L66)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		6189-1113 1-Way F HX Series (BK)
Pin	Wire Color	Circuit No.	Function
1	YE/RD	114	Oil Pressure Switch Signal

Instrument Panel Cluster (IPC)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15305356 16-Way F Micro-Pack 100 Series Unsealed (GY)
Pin	Wire Color	Circuit No.	Function
A1	PK	139	Ignition 1 Voltage
A2	YE	749	Security Indicator Control
A3	-	-	Not Used
A4	D-BU	15	Right Turn Signal
A5	L-BU	14	Left Turn Signal
A6-A7	-	-	Not Used
A8	GY	8	I/P Lamps Supply Voltage
B1	PU	5234	Passenger Seat Belt Indicator Control
B2	OG	2540	Battery Positive Voltage
B3	-	-	Not Used
B4	BK/WH	151	Ground
B5	PU	1807	Class 2 Serial Data
B6
B7-B8	-	-	Not Used
