HVAC Schematics

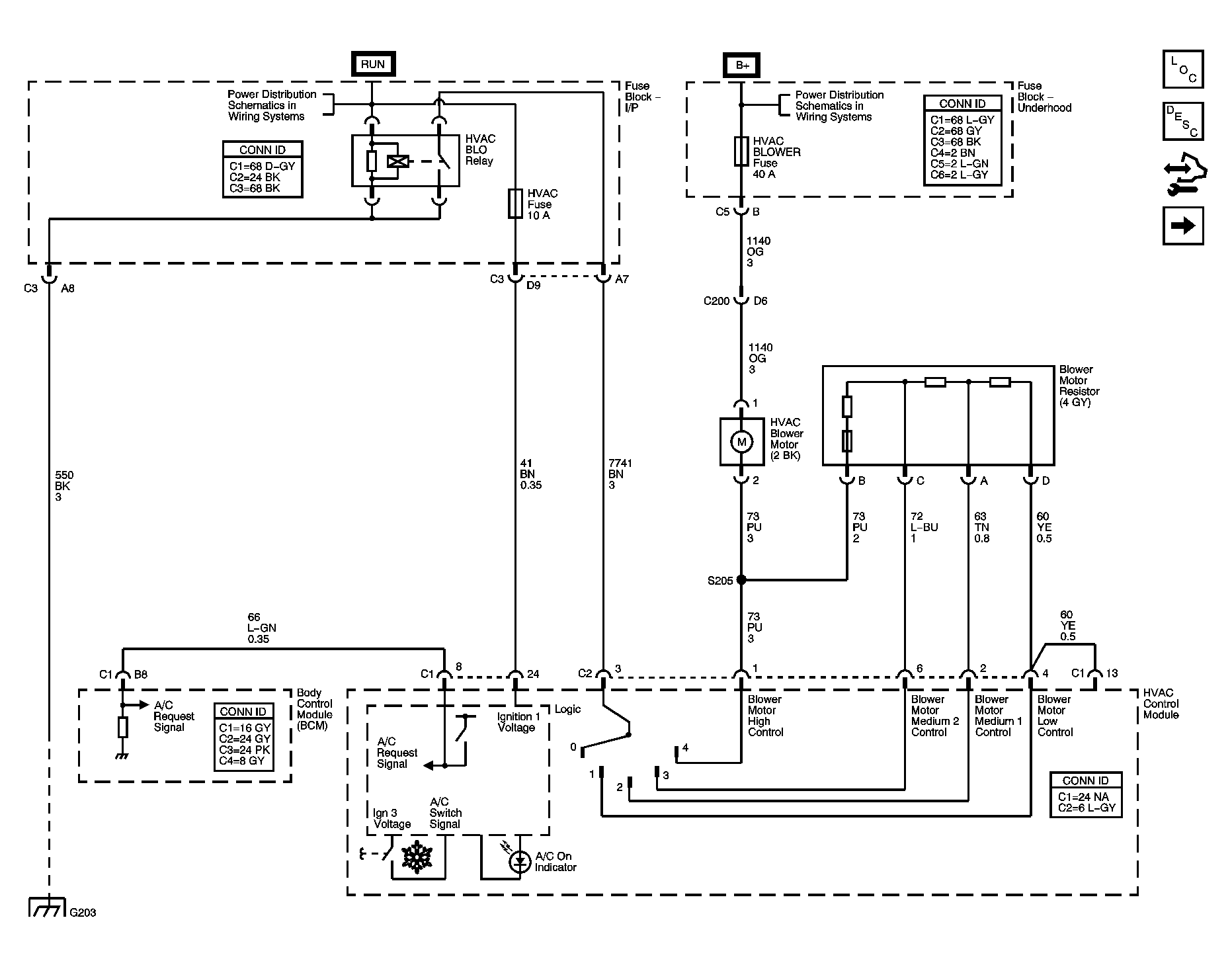

Fig 1: Blower Controls
GM1583950Courtesy of GENERAL MOTORS CORP.

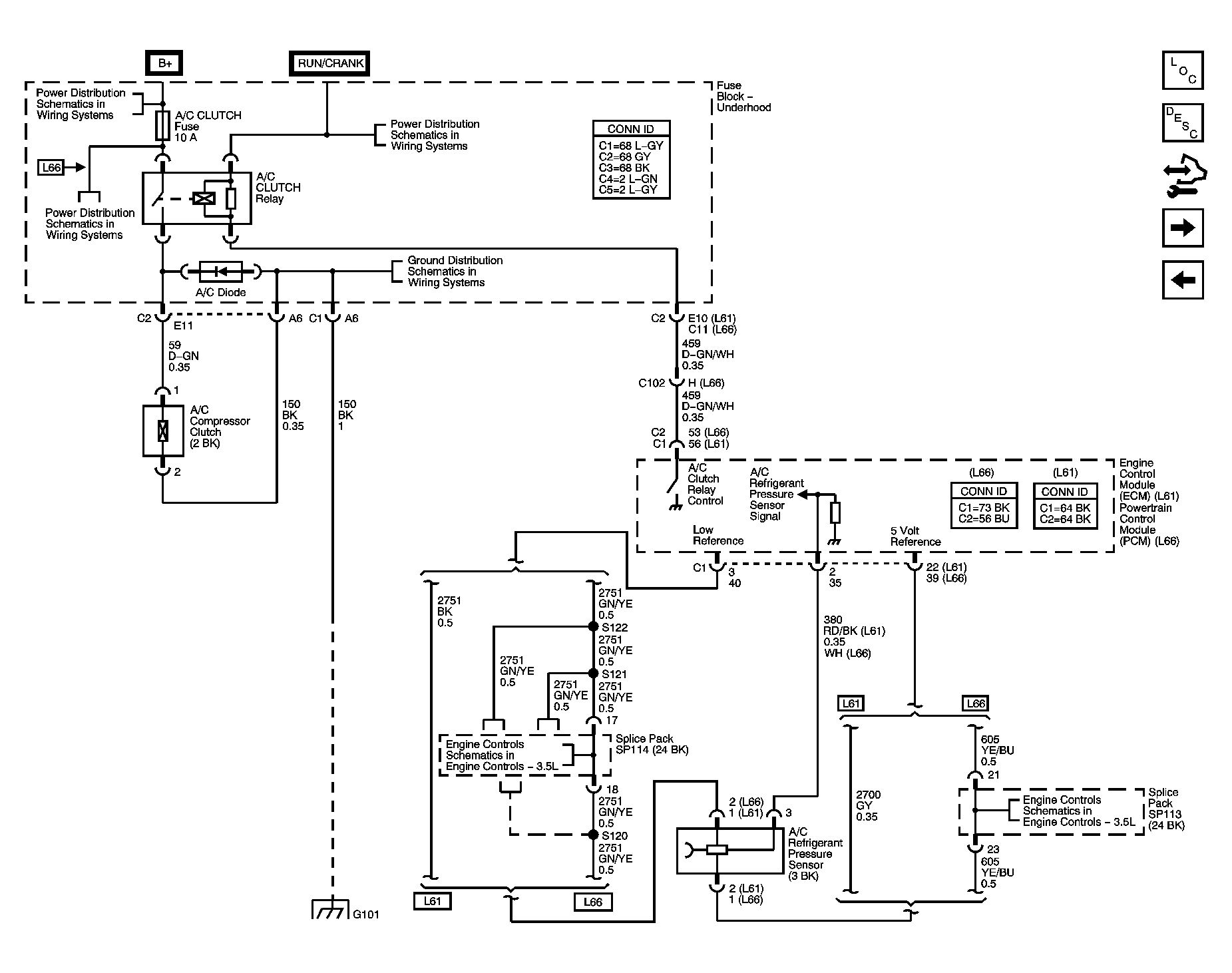

Fig 2: Compressor and Pressure Sensor Signals
GM1583951Courtesy of GENERAL MOTORS CORP.

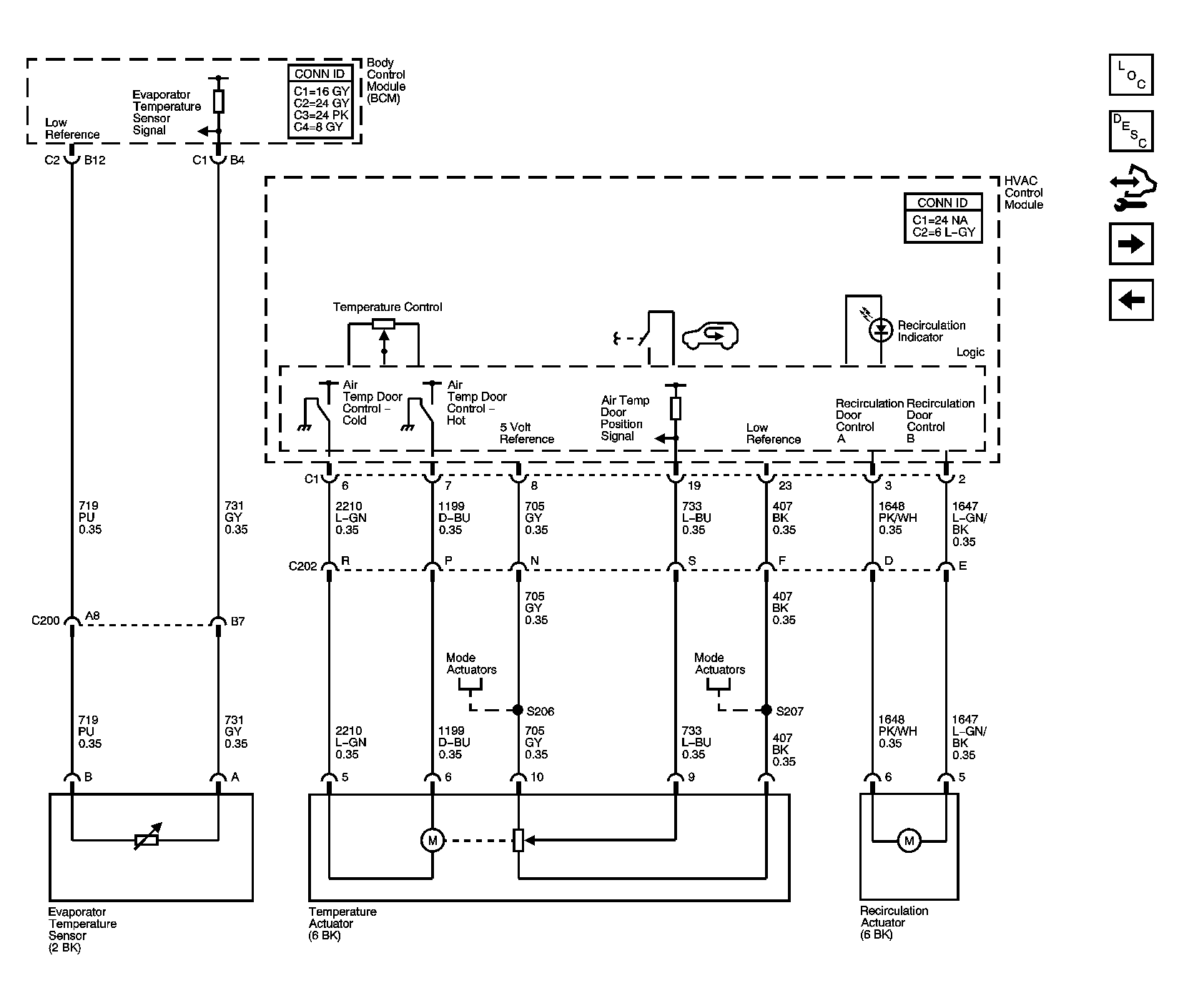

Fig 3: Temperature and Recirculation Signals
GM1583952Courtesy of GENERAL MOTORS CORP.

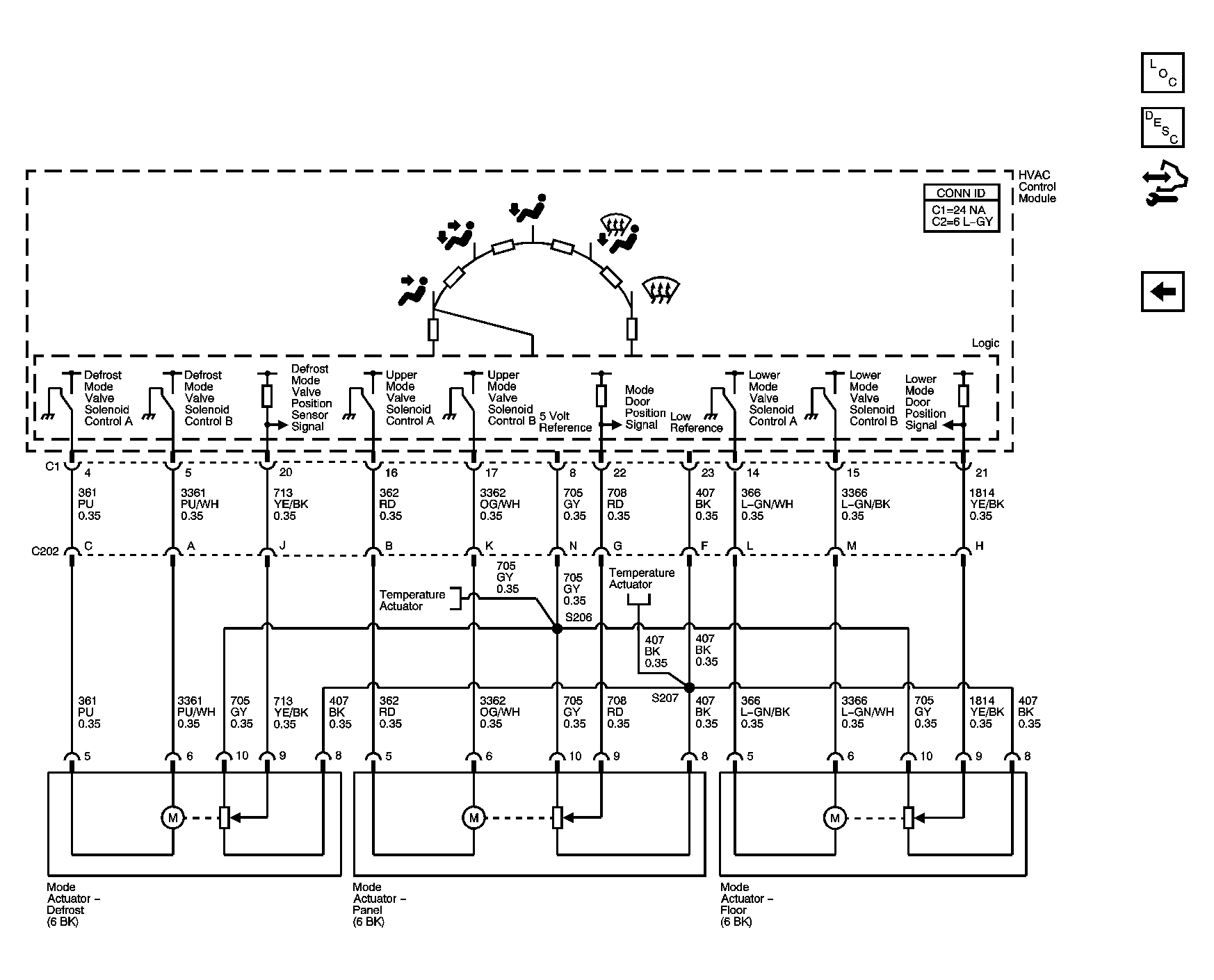

Fig 4: Mode Switch Signals
GM1614795Courtesy of GENERAL MOTORS CORP.
