Section 8 (Automatic Transaxle - 4T45-E - DTC P0115 To DTC P0756)
>>
DTC P0742
>>
Notes
DTC P0742: Notes
WARNING:
This page is about a different variant/trim than selected.

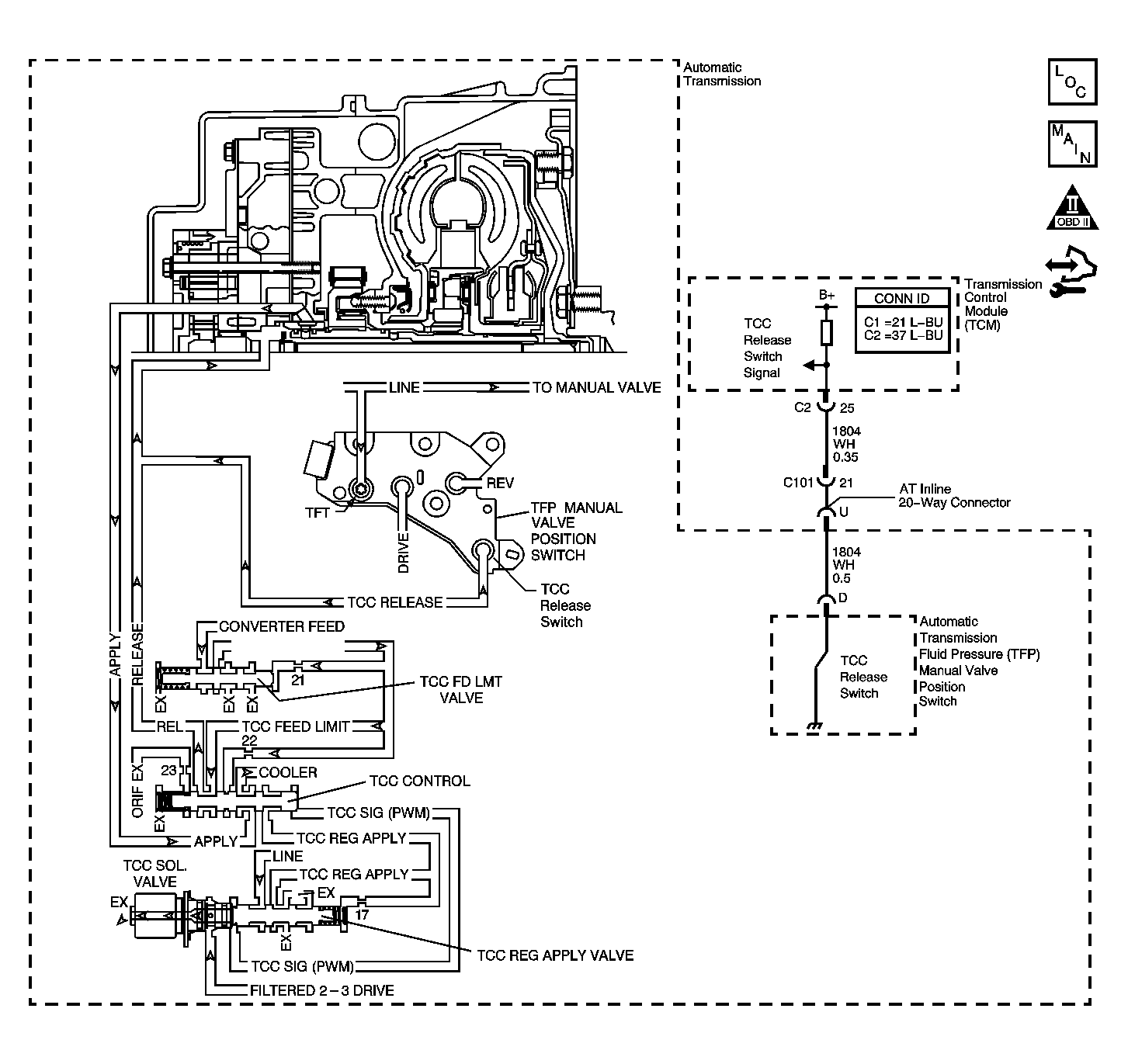

Fig 1: Fluid Hydraulic Circuit
Courtesy of GENERAL MOTORS CORP.
