Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

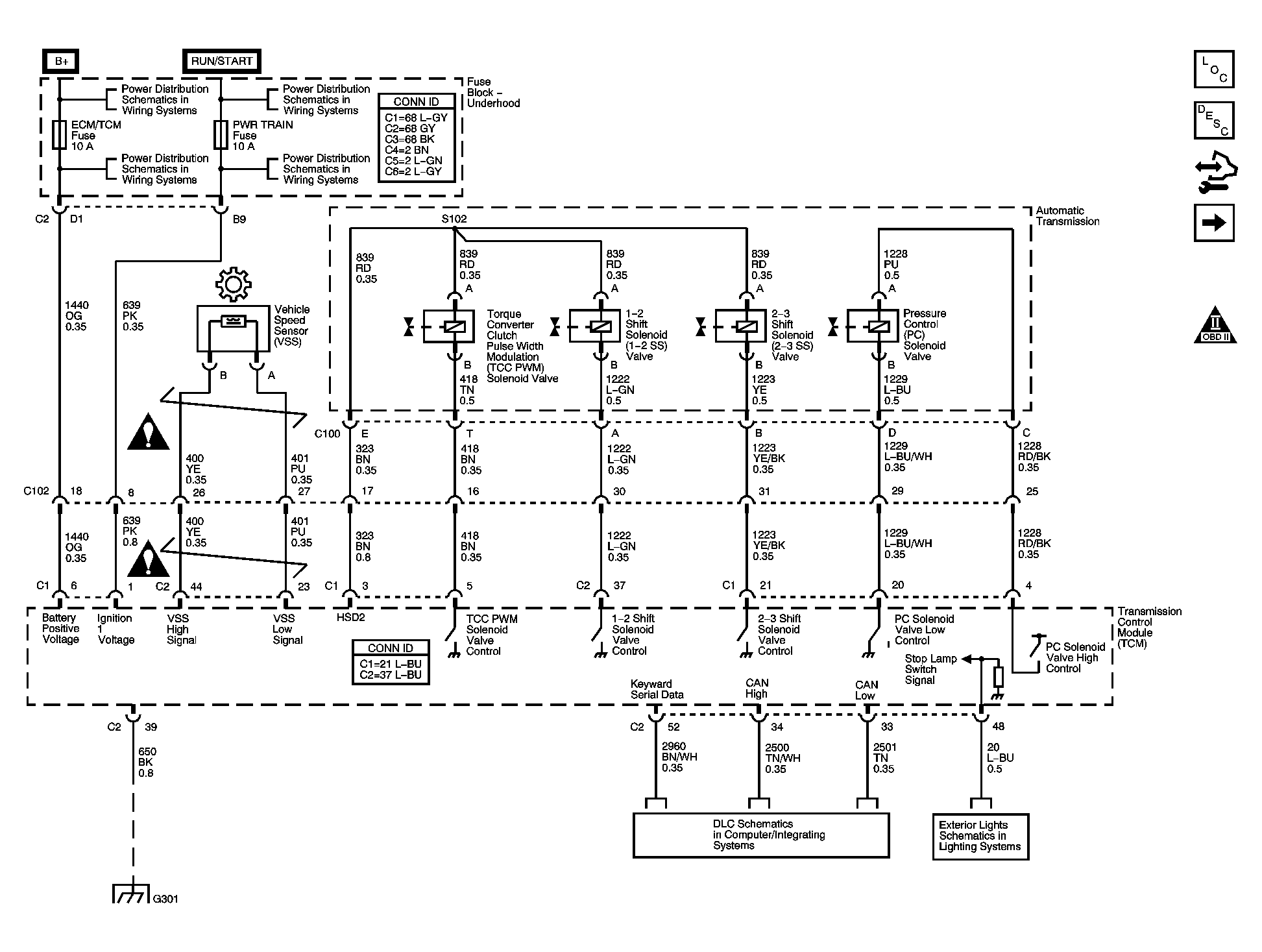

Fig 1: Power, Ground, Solenoid Controls and VSS
GM1584019Courtesy of GENERAL MOTORS CORP.

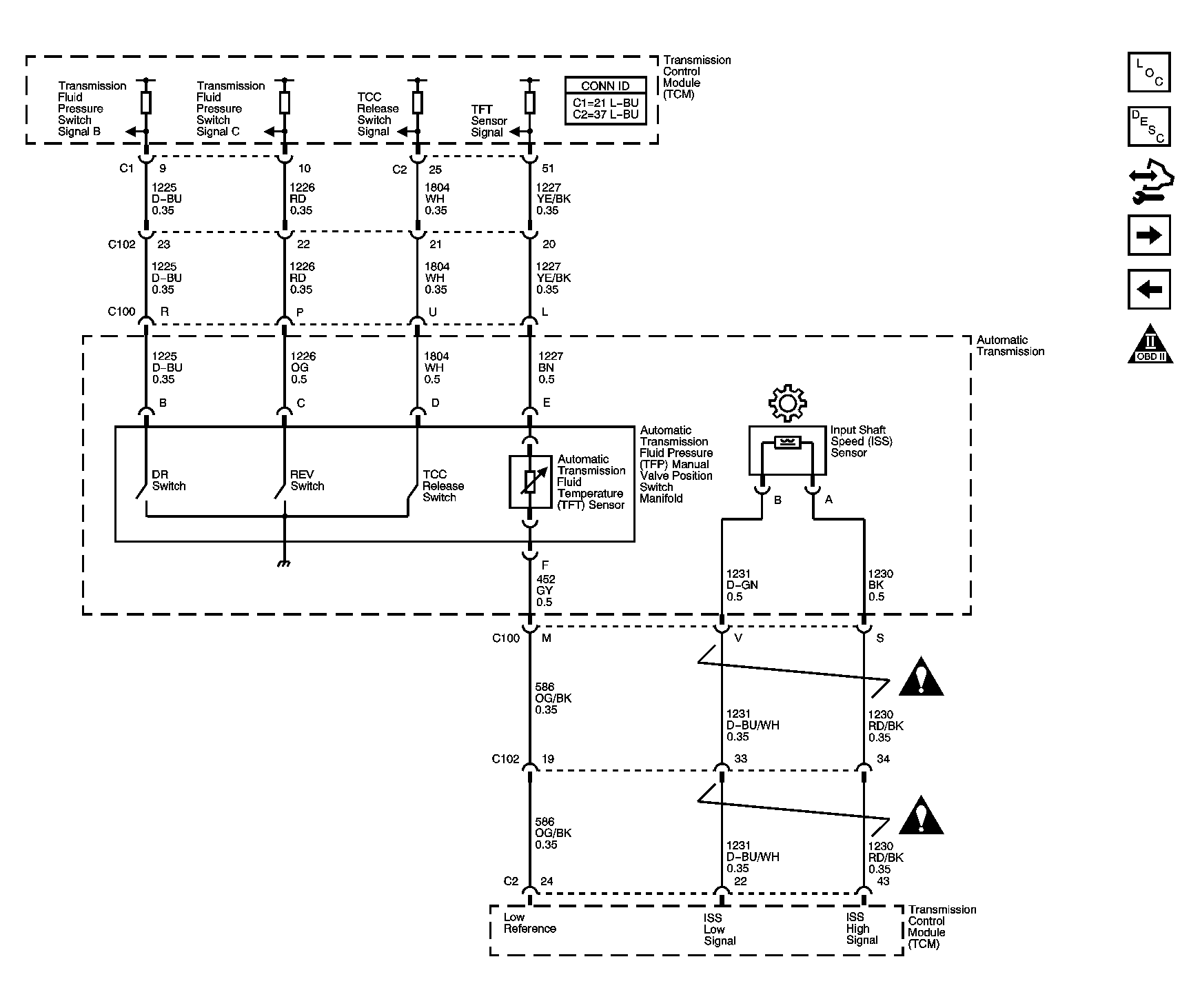

Fig 2: ISS, TFT, TFP Switch and Indicators
GM1584017Courtesy of GENERAL MOTORS CORP.

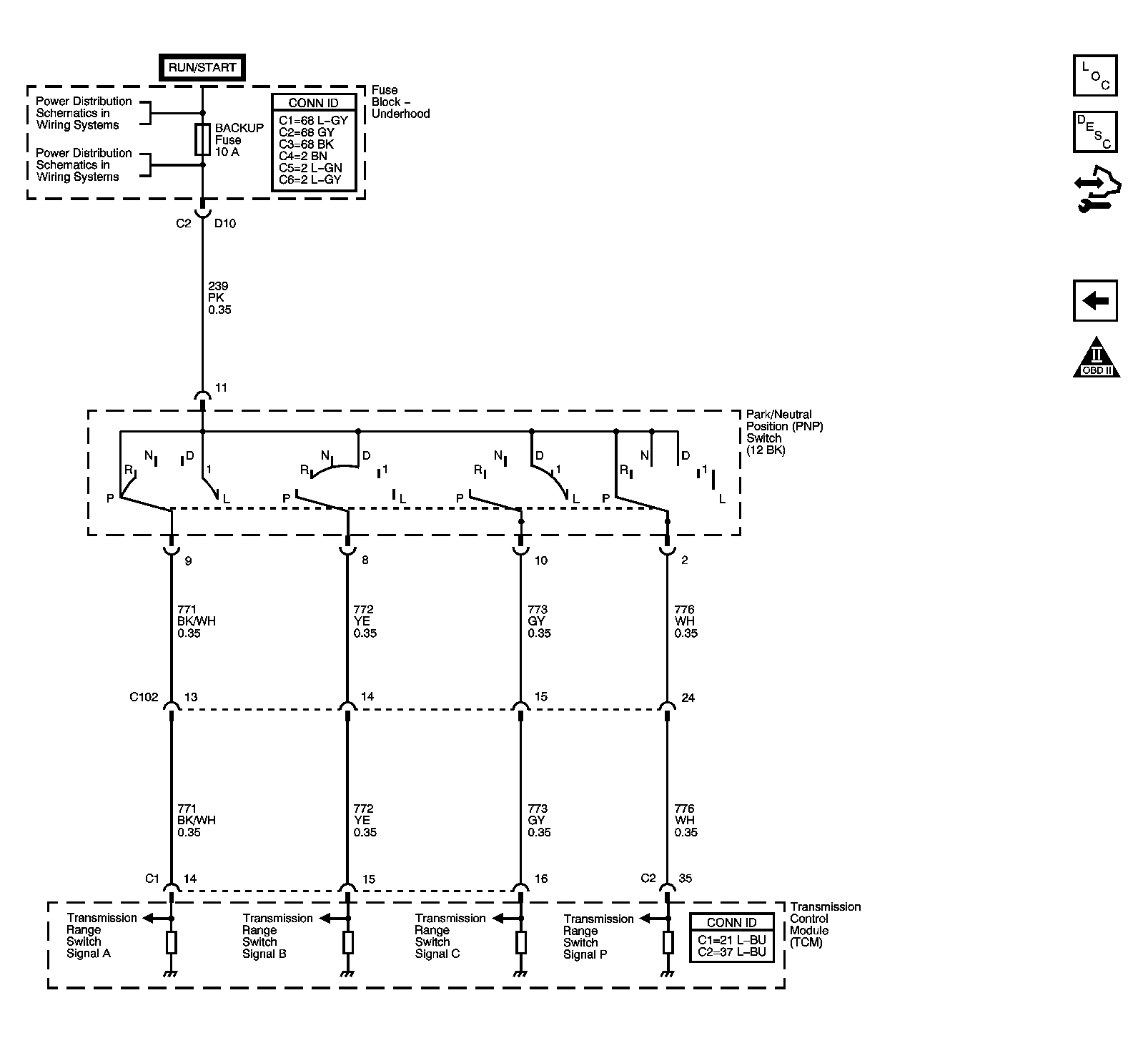

Fig 3: PNP Switch
GM1584016Courtesy of GENERAL MOTORS CORP.
