Installation Procedure

WARNING: This page is about a different variant/trim than selected.

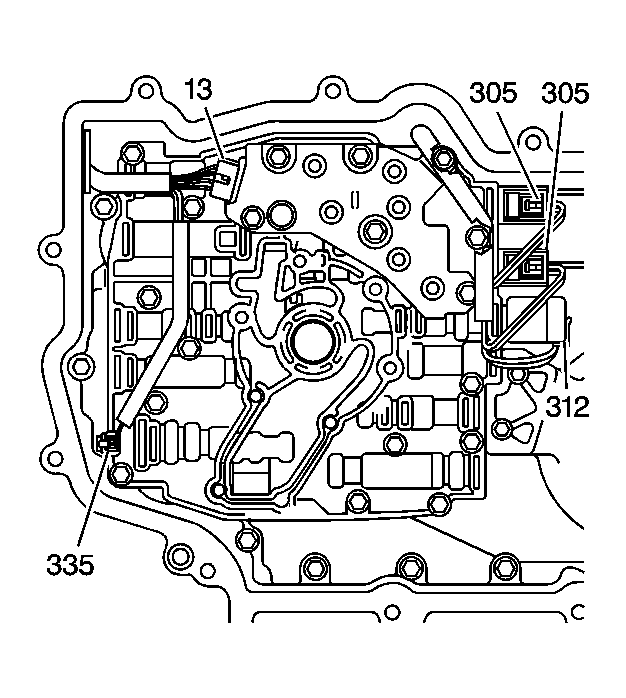

Fig 1: View Of TFP Switch Assembly
GM768690Courtesy of GENERAL MOTORS CORP.
  1. Connect the wiring harness assembly to the following components:
    • The TFP switch assembly (13)
    • The pressure control solenoid (312) (red connector)
      • IMPORTANT: The 1-2 shift solenoids wires are red and light green. The 2-3 shift solenoid wires are red and yellow.
    • The 1-2 shift solenoid (305) (white connector)
    • The 2-3 shift solenoids (305) (white connectors)
    • The TCC solenoid (335)
  2. Install the control valve body. Refer to Control Valve Body Replacement .
  3. Install the transmission side cover. Refer to Case Side Cover Replacement .
  4. Install the transmission. Refer to Transmission Replacement  .
    IMPORTANT: It is recommended that transmission adaptive pressure (TAP) information be reset.
    Resetting the TAP values using a scan tool will erase all learned values in all cells. As a result, the engine control module (ECM), powertrain control module (PCM) or transmission control module (TCM) will need to relearn TAP values. Transmission performance may be affected as new TAP values are learned.
  5. Reset the TAP values. Refer to Transmission Adaptive Functions  .
