Wiring Harness Connection

WARNING: This page is about a different variant/trim than selected.

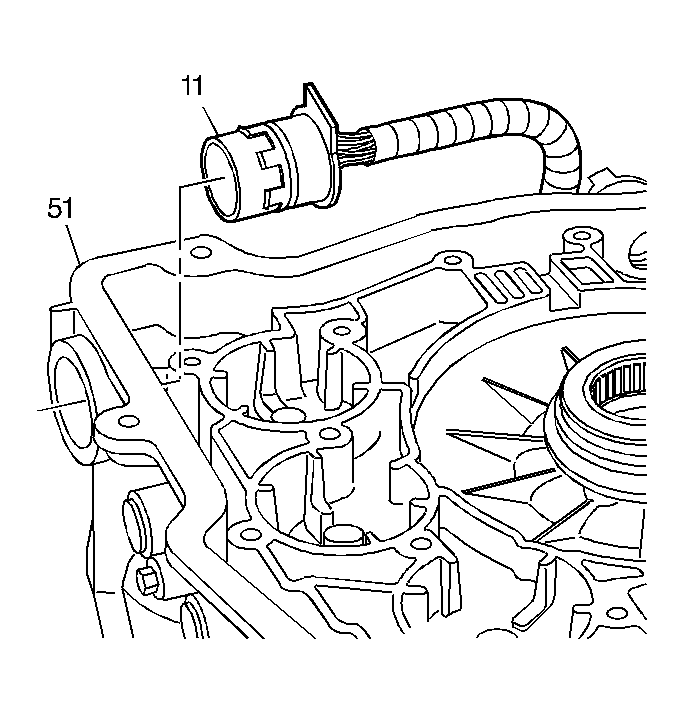

    Fig 1: Identifying Wiring Harness Pass Thru Connector
    GM20312Courtesy of GENERAL MOTORS CORP.
  1. Inspect the wiring harness (11) for damage.
  2. Inspect the pass thru connector pins and o-ring seal for damage.
  3. Assemble the wiring harness pass thru connector into the transaxle case bore from the inside of the transaxle case.
