Wiring Harness Assembly Connect
WARNING: This page is about a different variant/trim than selected.

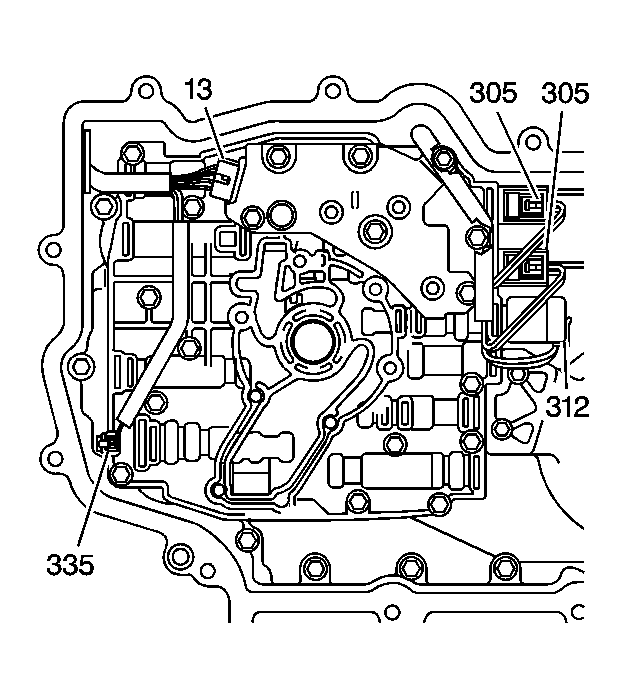

Connect the wiring harness assembly to the following components:
- The TFP switch assembly (13)
- The pressure control solenoid (312) - red connector
- The 1-2 shift solenoid (305) - white connector
- The 2-3 shift solenoids (305) - white connectors
- The TCC solenoid (335)
IMPORTANT:
The 1-2 shift solenoids wires are red and light green. The 2-3 shift solenoid wires are red and yellow.
