Installation Procedure

WARNING: This page is about a different variant/trim than selected.

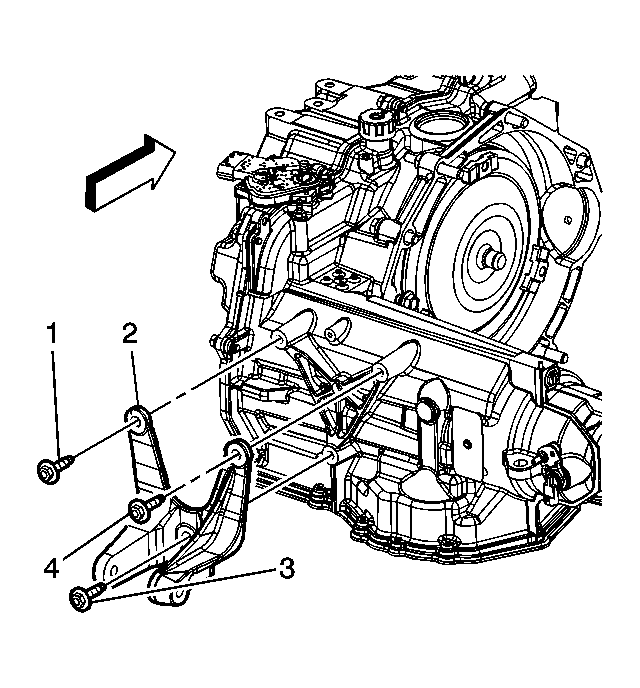

    Fig 1: Removing/Installing Transaxle Mount Bracket & Bolts
    GM1547463Courtesy of GENERAL MOTORS CORP.
  1. Install the transmission mount bracket (2).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the transmission mount bracket bolts (1, 3, 4).

    Tighten:  Tighten the bolts to 55 N.m (41 lb ft).

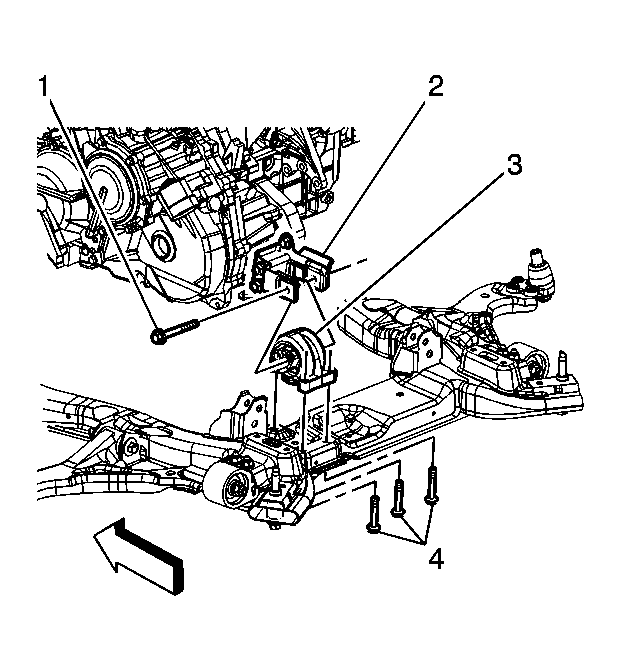

    3. Fig 2: Removing/Installing Transaxle Mount (Rear) & Bolts
    GM1370513Courtesy of GENERAL MOTORS CORP.
  3. Install the transmission mount (2) to the vehicle.
  4. Install the transmission mount-to-frame bolts (4).

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

  5. Install the transmission mount-to-bracket through bolt (1), while aligning the transmission mount to the bracket.

    Tighten:  Tighten the bolt to 110 N.m (81 lb ft).

  6. Lower the vehicle.
