Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Support the engine. Refer to Engine Support Fixture in Engine Mechanical.
  2. Remove the battery tray. Refer to Battery Tray Replacement (L61) or Battery Tray Replacement (L66) in Engine Electrical.

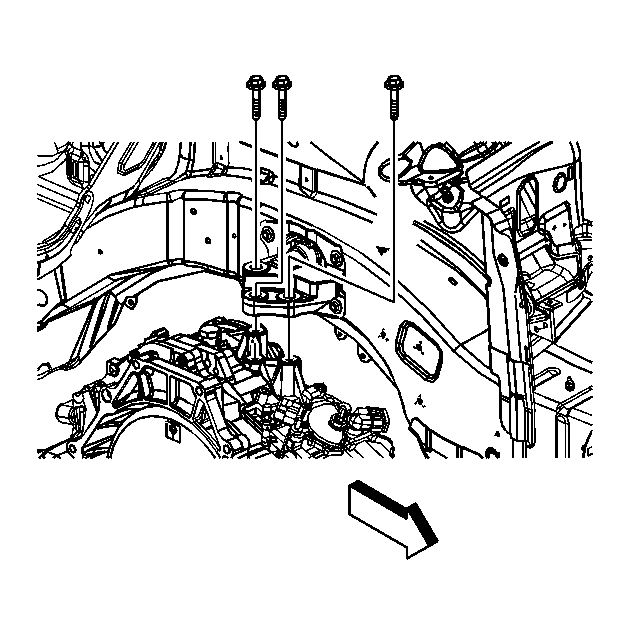

    3. Fig 1: Removing/Installing Transaxle Mount (Left) Bolts
    GM1370512Courtesy of GENERAL MOTORS CORP.
  3. Remove the transmission mount to transmission bolts
    4. Fig 2: Left Transmission Mount & Side Rail Bolts
    GM928785Courtesy of GENERAL MOTORS CORP.
  4. Remove the transmission mount to frame rail bolts.
  5. Remove the mount from the engine.
