Installation Procedure

WARNING: This page is about a different variant/trim than selected.

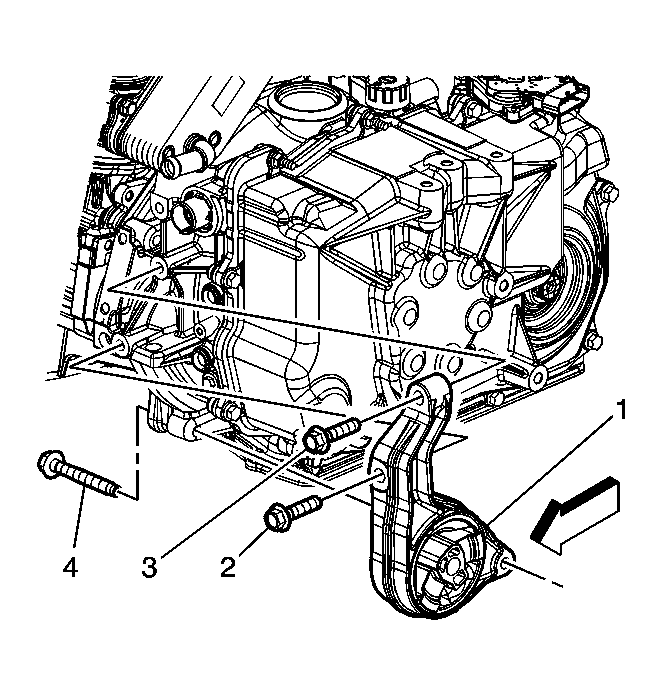

    Fig 1: Removing/Installing Front Transaxle Mount
    GM1547466Courtesy of GENERAL MOTORS CORP.
  1. Install the front transmission mount (1) to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the upper mount bolts (2, 3).

    Tighten:  Tighten the bolts to 90 N.m (66 lb ft).

  3. Install the lower mount bolt (4).

    Tighten:  Tighten the bolt to 90 N.m (66 lb ft).

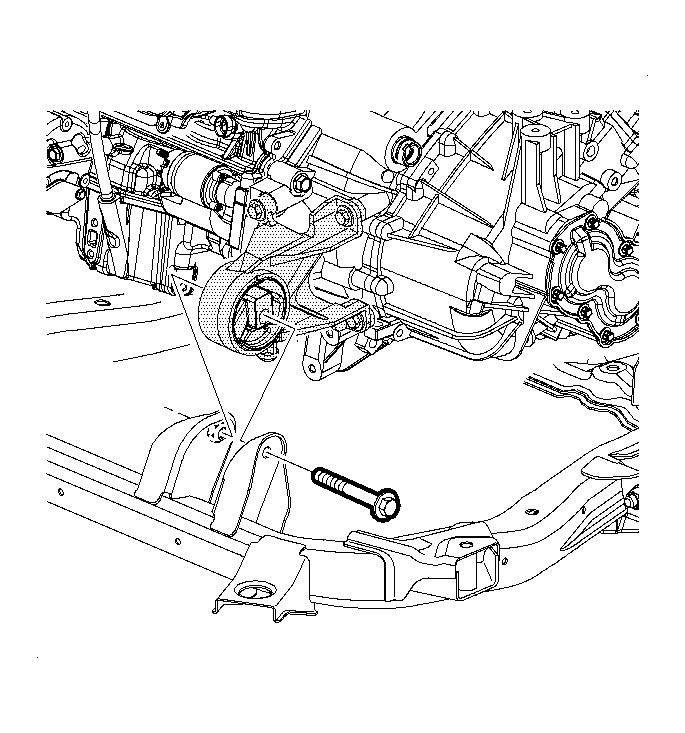

    4. Fig 2: View Of Front Transaxle Mount Through Bolt
    GM928767Courtesy of GENERAL MOTORS CORP.
  4. Install the frame to transmission mount through bolt.

    Tighten:  Tighten the bolt to 110 N.m (81 lb ft).

  5. Remove the transmission stand.
  6. Lower the vehicle.
