Transmission Cooler Line Seals Removal

WARNING: This page is about a different variant/trim than selected.

Tools Required

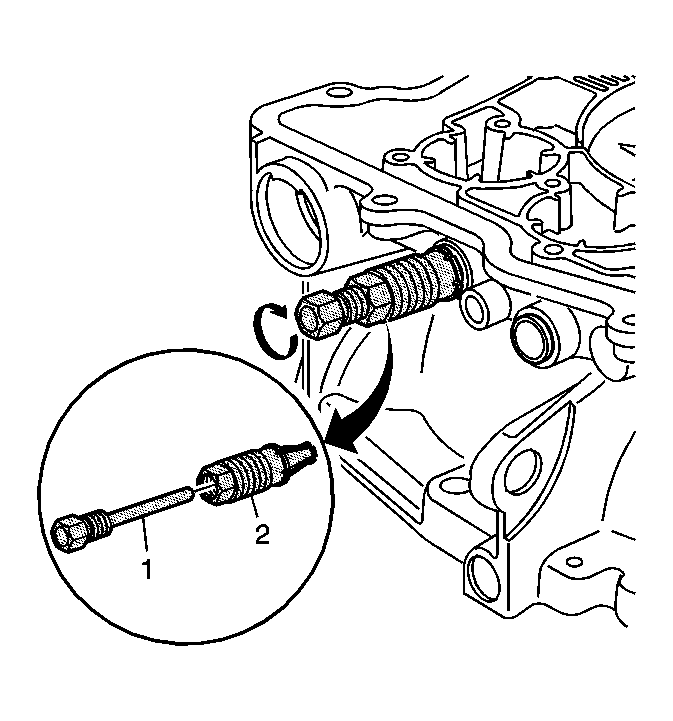

    Fig 1: Inserting J 45201 Into Cooler Line Seal Bore
    GM822722Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: If you have special tool J 41239-10  use step 1 and 2 only. See Special Tools .
  1. Install J 45201  collet (2) fully into the cooler line seal bore.Special Tools .
  2. Insert the forcing screw piece of the J 45201  (1) into J 45201  (2) and tighten. See Special Tools .

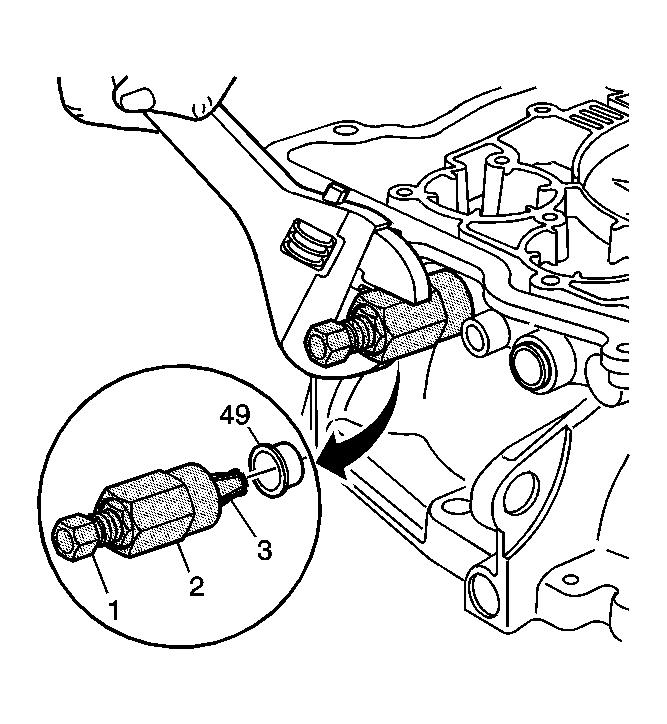

    3. Fig 2: Removing Cooler Line Seal With J 45201
    GM822724Courtesy of GENERAL MOTORS CORP.
  3. Thread the J 45201  collar (2) onto J 45201  (3) and tighten until the tool has removed the seal. See Special Tools .
  4. Use a pair of pliers to remove the cooler line seal from J 45201  . See Special Tools .
