Tools Required

WARNING: This page is about a different variant/trim than selected.

J 28540-A  Torque Converter Seal Installer. See Special Tools .

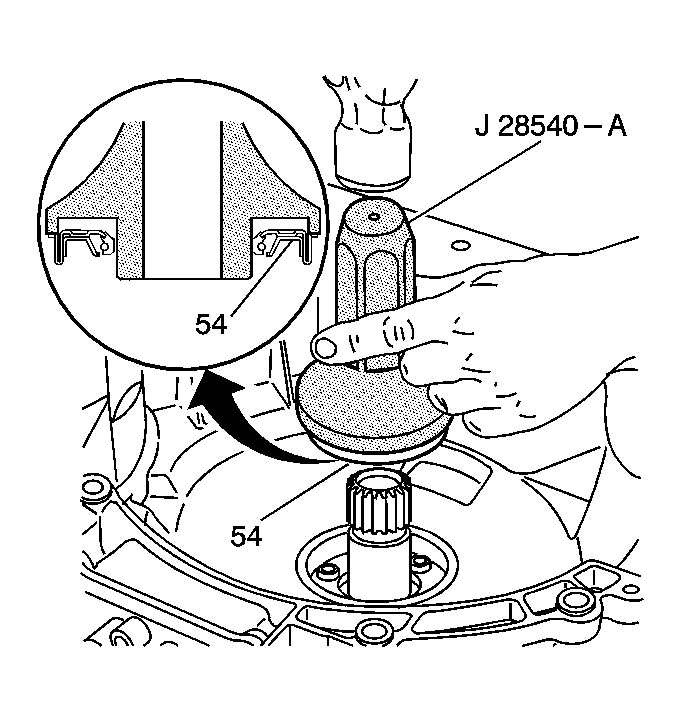

Fig 1: Installing Torque Converter Seal
GM20218Courtesy of GENERAL MOTORS CORP.
NOTE: Install the seal onto the tool before installing into the case to prevent damage to the seal.

Install a new torque converter seal (54). Use the J 28540-A  . See Special Tools .
