Reverse Input Clutch Housing Removal

WARNING: This page is about a different variant/trim than selected.

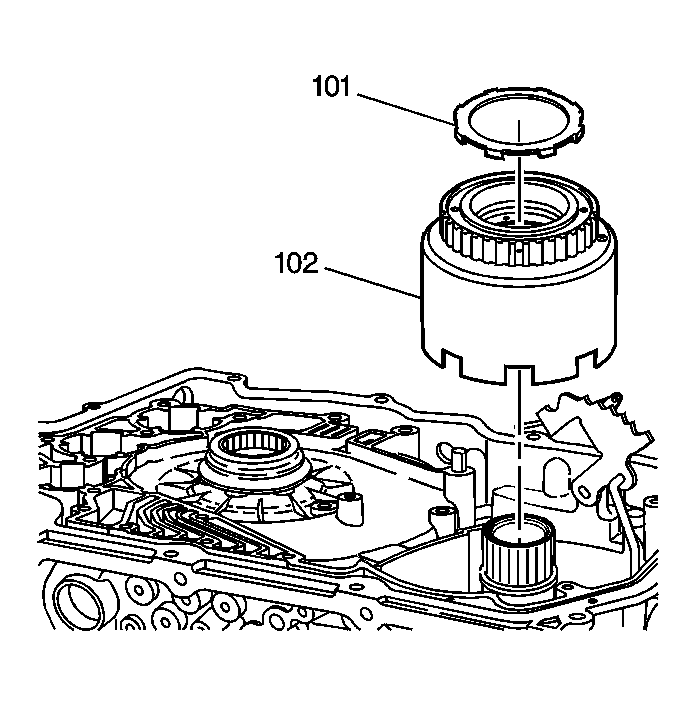

    Fig 1: Reverse Input Clutch Housing
    GM1644729Courtesy of GENERAL MOTORS CORP.
  1. Remove the driven sprocket support to reverse clutch housing thrust washer (101).
  2. Remove the reverse input clutch housing and the 2nd roller clutch assembly (102).
