Reaction Internal Gear, Input Carrier Installation

WARNING: This page is about a different variant/trim than selected.

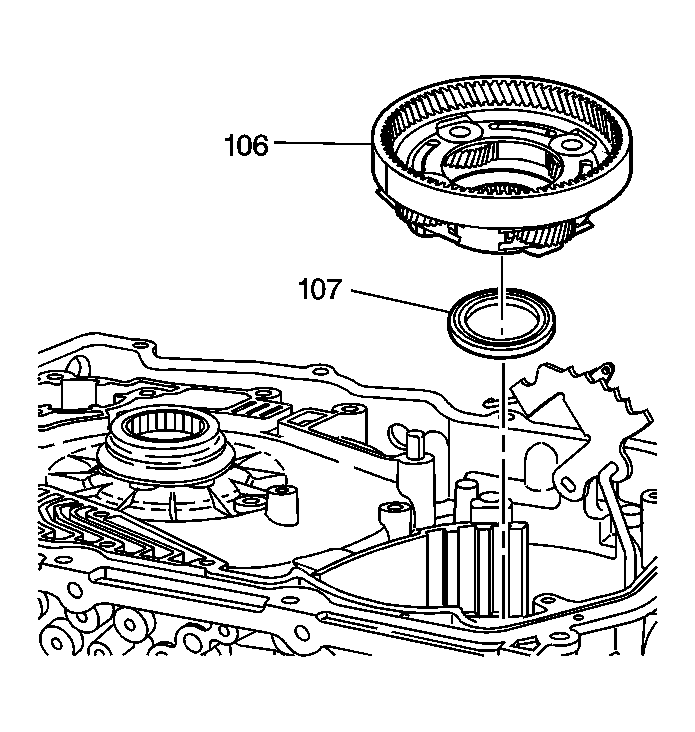

Fig 1: Input Carrier & Reaction Gear Assembly
GM1644733Courtesy of GENERAL MOTORS CORP.
IMPORTANT: While installing the reaction internal gear and input carrier assembly, rotate the assembly in order to mesh the input carrier pinion gears to the input internal gear.

Install the reaction internal gear and input carrier assembly (106) into the transmission case.
