Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the left drive axle assembly. Refer to Wheel Drive Shaft Replacement - Front in Wheel Drive Shafts.
    3. Fig 1: Locating Drive Axle Retaining Clip
    GM1873863Courtesy of GENERAL MOTORS CORP.
  3. Remove the snap ring from axle. Discard the snap ring. Do not reuse.

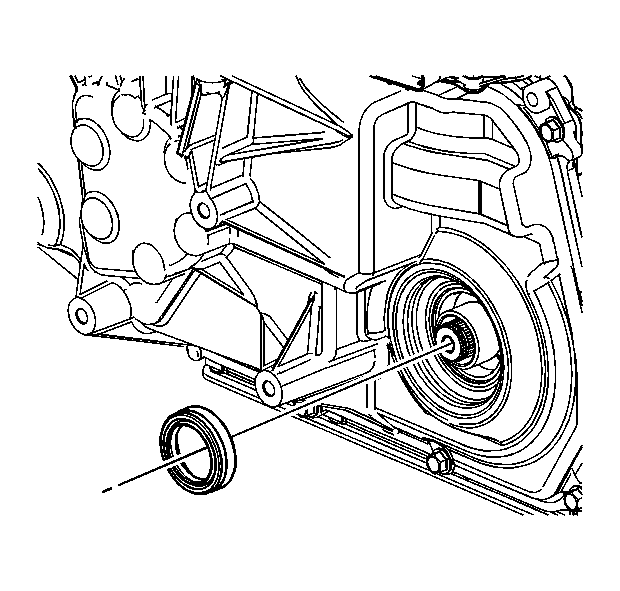

    4. Fig 2: View Of Case Cover Seal
    GM1873862Courtesy of GENERAL MOTORS CORP.
  4. Remove the output axle seal.
    5. Fig 3: Using Special Tool To Remove Sleeve From Output Axle Shaft
    GM569234Courtesy of GENERAL MOTORS CORP.
  5. Use the J 41227  to remove the sleeve from the output axle shaft.
