Low/Reverse Band Installation

WARNING: This page is about a different variant/trim than selected.

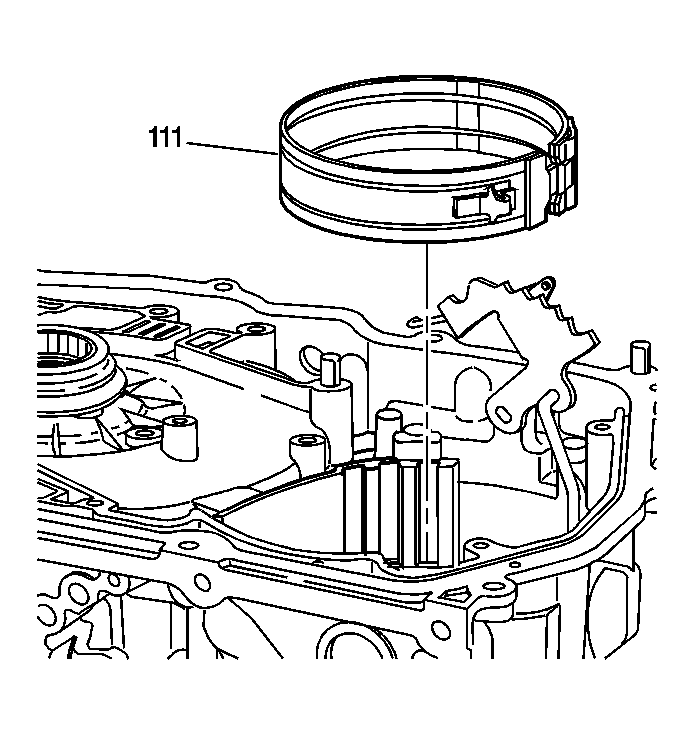

Fig 1: Identifying Low/Reverse Band
GM1644737Courtesy of GENERAL MOTORS CORP.

Install the low/reverse band (111) into the transmission case. Align the servo pin apply surface toward the bottom pan and hook the band into the band anchor pin inside the transmission case.
