Intermediate Fourth Band Assembly Installation

WARNING: This page is about a different variant/trim than selected.

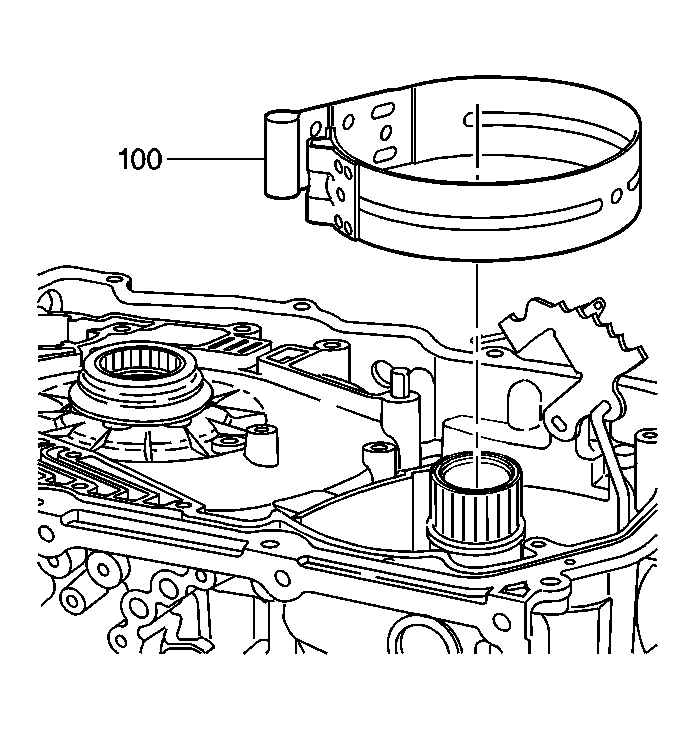

    Fig 1: Intermediate Fourth Band Assembly
    GM1644730Courtesy of GENERAL MOTORS CORP.
  1. Assemble a new Intermediate/Fourth band (100) into the transmission case.
    2. Fig 2: Checking Proper Positioning Of Intermediate/Fourth Band
    GM474255Courtesy of GENERAL MOTORS CORP.
  2. In order to verify the proper positioning of the band, insert a screwdriver through the Intermediate/Fourth servo bore. The screwdriver should press on the servo pin rest and compress the band around the reverse clutch housing.
