Input Internal Gear, Forward Clutch Hub Removal

WARNING: This page is about a different variant/trim than selected.

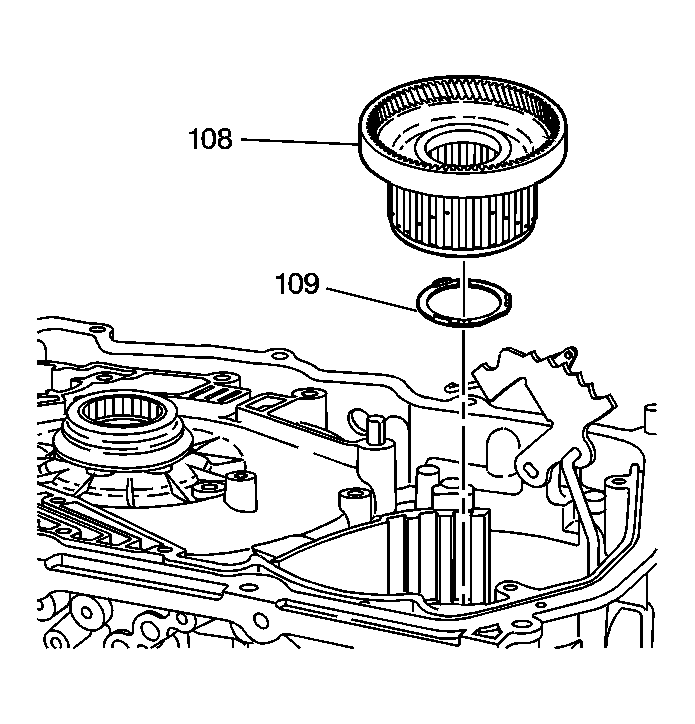

    Fig 1: Forward Clutch Hub Assembly
    GM1644734Courtesy of GENERAL MOTORS CORP.
  1. Remove the input internal gear and forward clutch hub assembly (108).
  2. If the forward clutch hub to race thrust washer (109) did not remain with the forward clutch hub, remove the forward clutch hub to race thrust washer (109).
