Fretting Ring, Final Drive Internal Gear Install

WARNING: This page is about a different variant/trim than selected.

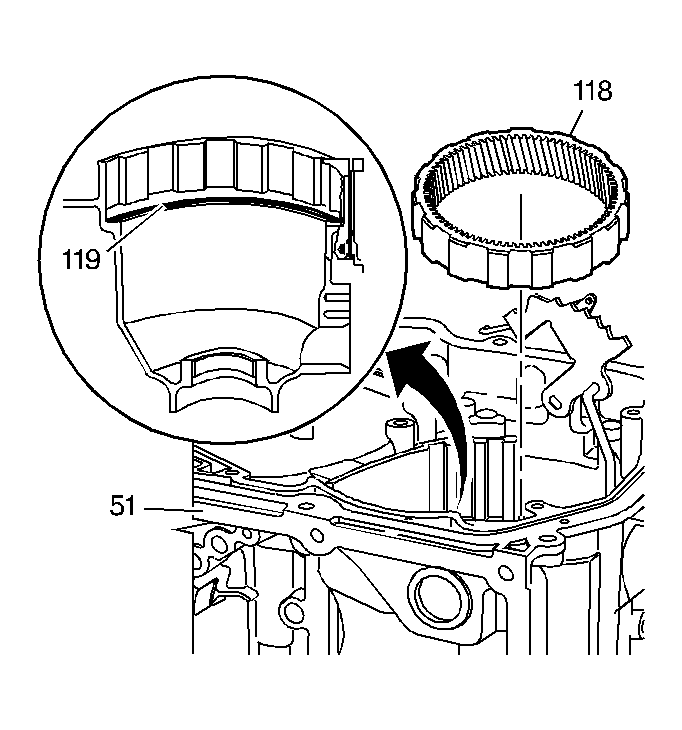

    Fig 1: View Of Fretting Ring
    GM20208Courtesy of GENERAL MOTORS CORP.
  1. If the fretting ring (119) has been removed, install the fretting ring (119) into the small groove in the transmission case (51).
    2. IMPORTANT: Install the final drive internal gear in same orientation as observed during removal, inside lip faces up.
  2. Install the final drive internal gear (118) into the transmission case (51).
