Tools Required

WARNING: This page is about a different variant/trim than selected.

J 28585  Snap Ring Screwdriver. See Special Tools .

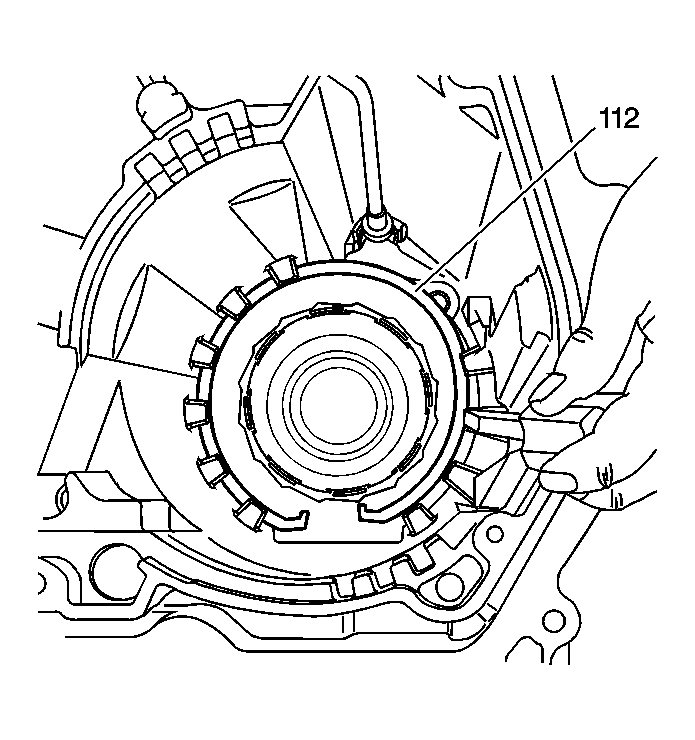

    Fig 1: Forward Clutch Support Snap Ring
    GM1644739Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The snap ring opening must be at the bottom of the transmission case. If the snap ring opening is out of position, inspect the transmission case for damage.
  1. Remove the forward clutch support snap ring (112) from the transmission case. Use the J 28585  . See Special Tools .

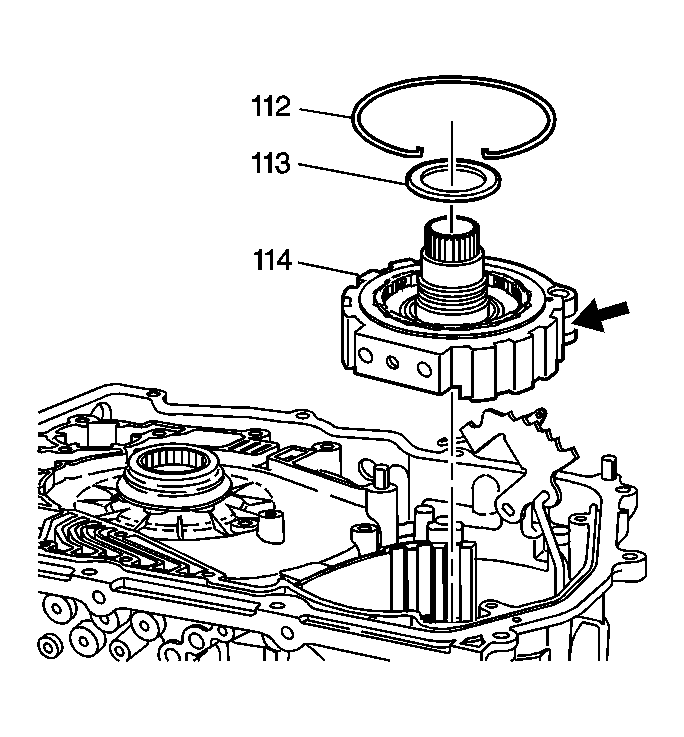

    2. Fig 2: Identifying Forward Clutch Support & Low Roller Clutch Assembly
    GM1644742Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: You may need to depress the parking pawl in order to remove the forward clutch support.
  2. Remove the forward clutch support and the low roller clutch assembly (114). Keep the forward clutch housing to the forward clutch support thrust bearing (113) with the forward clutch support assembly (114).
