Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Removing/Installing Shift Control Knob From Shift Control Lever
    GM1547442Courtesy of GENERAL MOTORS CORP.
  1. Install the shift control knob (2) to the shift control lever (1).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.

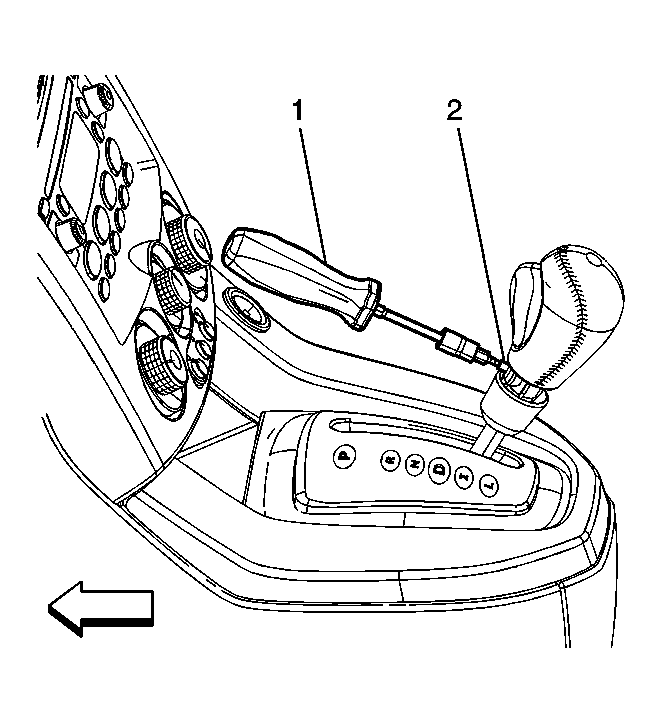

    Fig 2: Loosening/Tightening Shift Control Knob Screw
    GM1547444Courtesy of GENERAL MOTORS CORP.
  2. Install the shift control knob screw (2) if previously removed.

    Tighten:  Tighten the screw to 1.5 N.m(13 lb in).

    3. Fig 3: Securing Trim Ring To Shift Knob
    GM1547447Courtesy of GENERAL MOTORS CORP.
  3. Lift the shift control knob trim ring (1) up to the shift control knob until a click sound is heard indicating the trim ring (1) is secured to the shift knob (2).
  4. Check for proper operation of the shift control knob Button through all gear ranges.
