Tools Required

WARNING: This page is about a different variant/trim than selected.

J 36850  TRANSJEL™

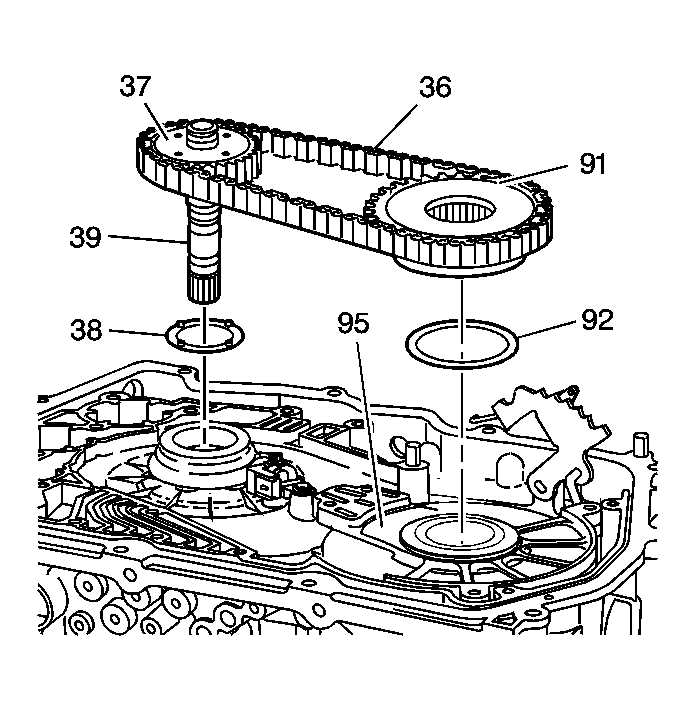

    Fig 1: Identifying Drive Sprocket, Driven Sprocket & Drive Link
    GM1644722Courtesy of GENERAL MOTORS CORP.
  1. Install the drive sprocket to drive sprocket support thrust washer (38) to the drive sprocket (37). Place the tabs on the thrust washer into the holes on the drive sprocket.
  2. Retain the thrust washer with J 36850  or equivalent.
  3. Install the driven sprocket to driven sprocket support thrust washer (92) onto the driven sprocket support (95).
    4. IMPORTANT: Orient the drive link assembly (36) in the same direction in which the drive link assembly (36) was removed. If the drive link assembly (36) is new, you can install it in either direction.
  4. Install the drive link assembly (36) to the drive and driven sprockets (37 and 91).
  5. Install as a complete assembly, the drive sprocket (37) the driven sprocket (91), and the drive link assembly (36) onto the transmission.
