Removal Procedure

WARNING: This page is about a different variant/trim than selected.

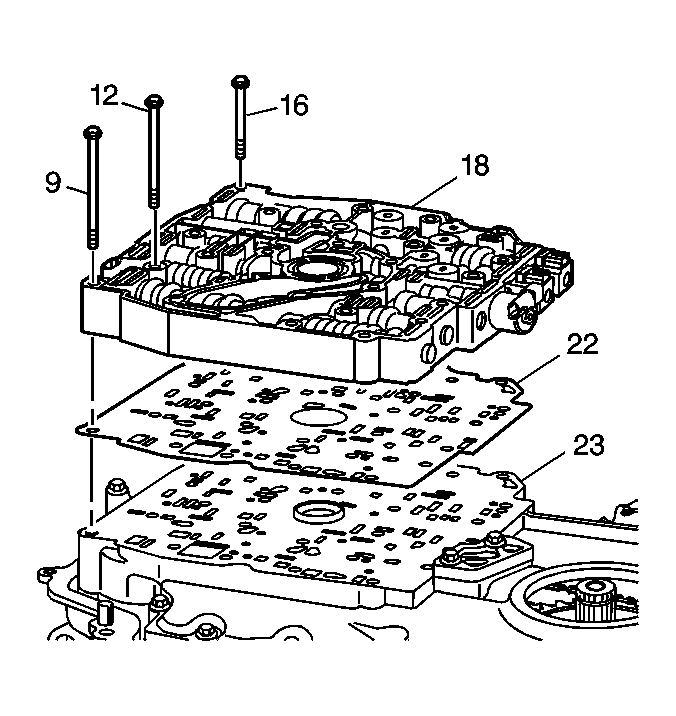

    Fig 1: View Of Control Valve Body & Spacer Plate Gasket
    GM768694Courtesy of GENERAL MOTORS CORP.
  1. Remove the transmission side cover. Refer to Case Side Cover Replacement .
  2. Remove the bolts (9, 12 and 16) from the control valve body assembly (18).
  3. Remove the control valve body assembly (18).
  4. Remove and discard the valve body to spacer plate gasket (22).
