Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Fig 1: View Of Control Valve Body & Spacer Plate Gasket

Courtesy of GENERAL MOTORS CORP.

Install the control valve body to spacer plate gasket (22) onto the spacer plate (23).

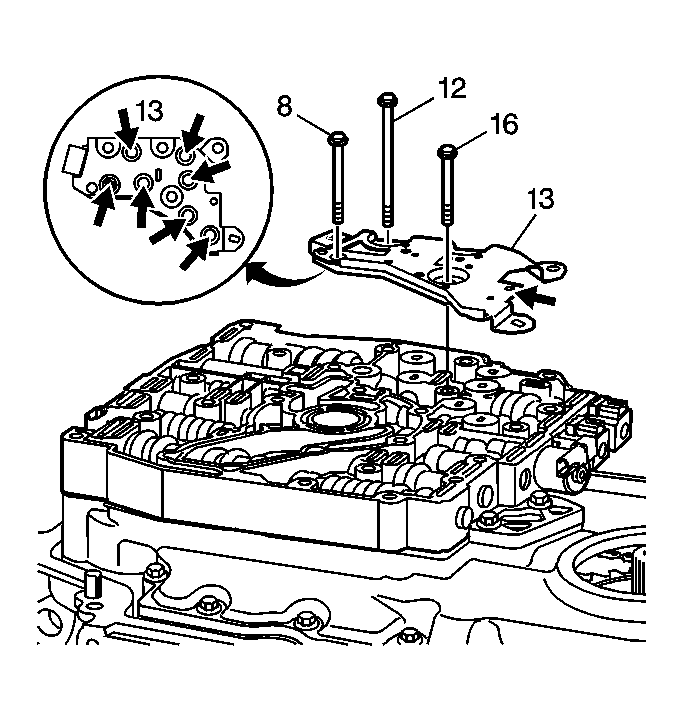

Fig 2: Inspecting Pressure Switch O-Rings

Courtesy of GENERAL MOTORS CORP.

Inspect the TFP switch assembly (13) in order to verify the condition and correct location of the seven pressure switch O-rings.
If necessary replace the pressure switch O-rings.

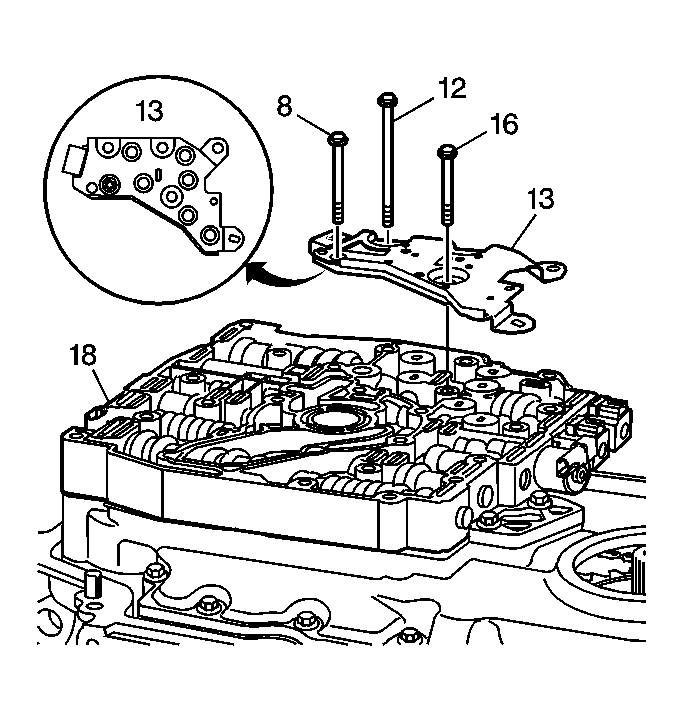

Fig 3: View Of TFP Switch Assembly

Courtesy of GENERAL MOTORS CORP.

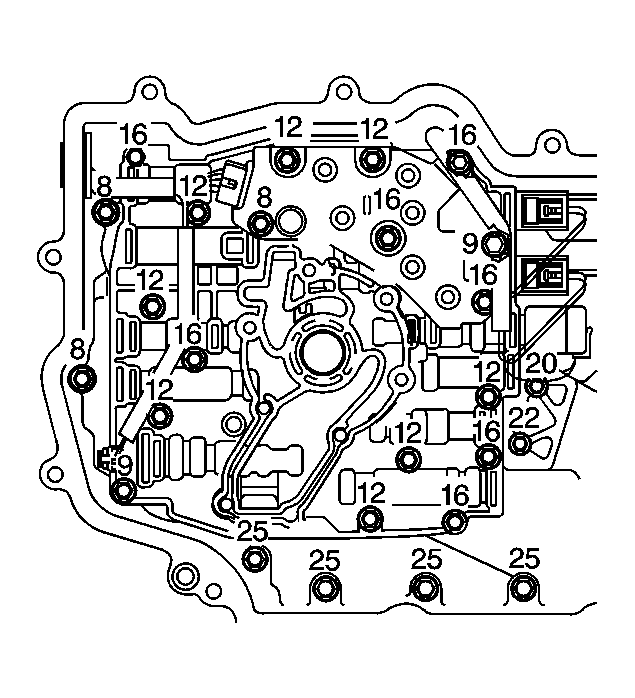

Fig 4: Identifying Control Valve Body Assembly Bolts

Courtesy of GENERAL MOTORS CORP.

Fig 5: View Of Control Valve Body Assembly Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Hand start the bolts.
Tighten: Tighten the bolts to 14 N.m (124 lb in).
Install the transmission side cover. Refer to Case Side Cover Replacement .
IMPORTANT: It is recommended that transmission adaptive pressure (TAP) information be reset.
Resetting the TAP values using a scan tool will erase all learned values in all cells. As a result, the engine control module (ECM), powertrain control module (PCM), or transmission control module (TCM) will need to relearn TAP values. Transmission performance may be affected as new TAP values are learned.
Reset the TAP values. Refer to Transmission Adaptive Functions .
