Checkball Removal
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS CORP.
IMPORTANT:
Do not use a magnet in order to remove the checkballs. The magnet may magnetize the checkballs, and the checkballs may attract metallic particles.

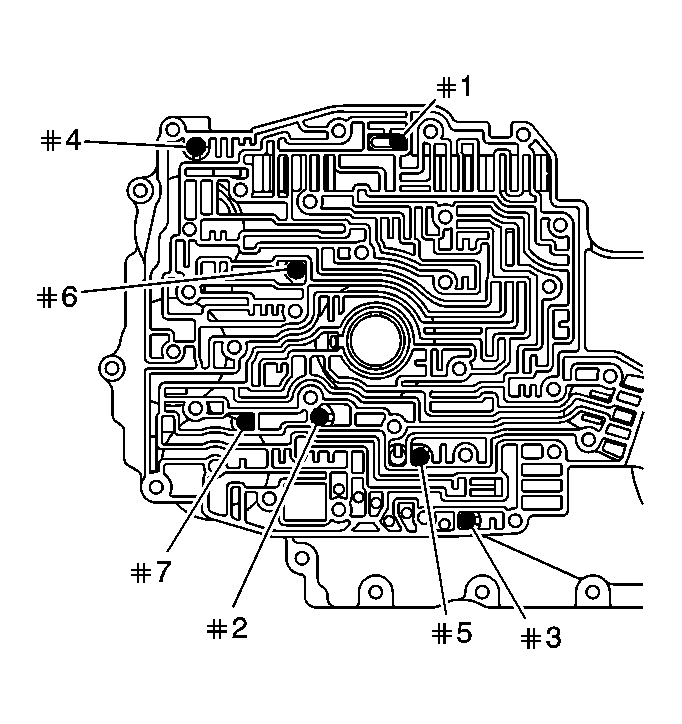

Remove the seven checkballs (26) in the channel plate.
