Tools Required

WARNING: This page is about a different variant/trim than selected.

J 36850  TRANSJEL™

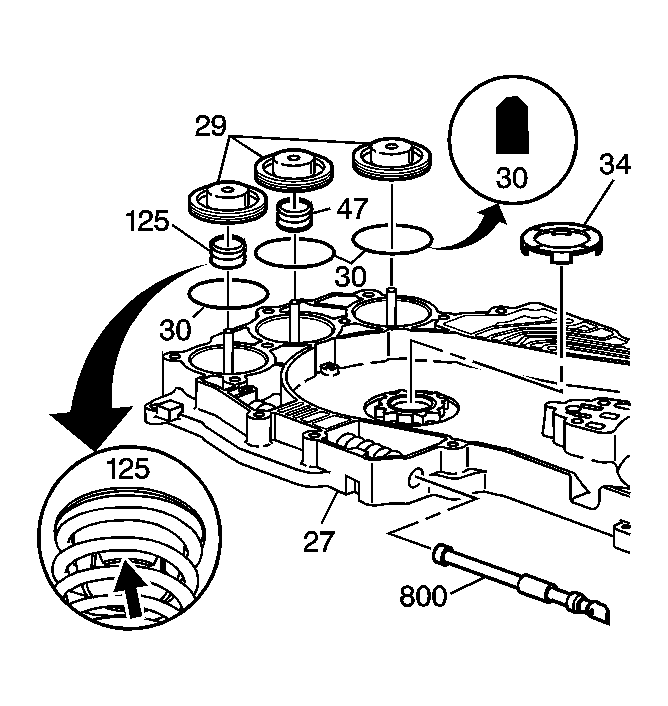

    Fig 1: Identifying Accumulator Piston Seals
    GM55115Courtesy of GENERAL MOTORS CORP.
  1. Assemble the new accumulator piston seals (30) on the three accumulator pistons (29).
  2. Install the 1-2 and 2-3 accumulator assist springs (47, 125).
  3. Install the accumulator pistons (29) into the channel plate over the guide pins. The pistons are identical. You can assemble the pistons in any of the three accumulator bores.
  4. In order to retain the pistons, apply J 36850  onto the piston seals.
  5. Install the manual valve (800) into channel plate.
