Torque Converter/Cooler and Lube Circuits

WARNING: This page is about a different variant/trim than selected.

Refer to reverse range for a complete description of these circuits.

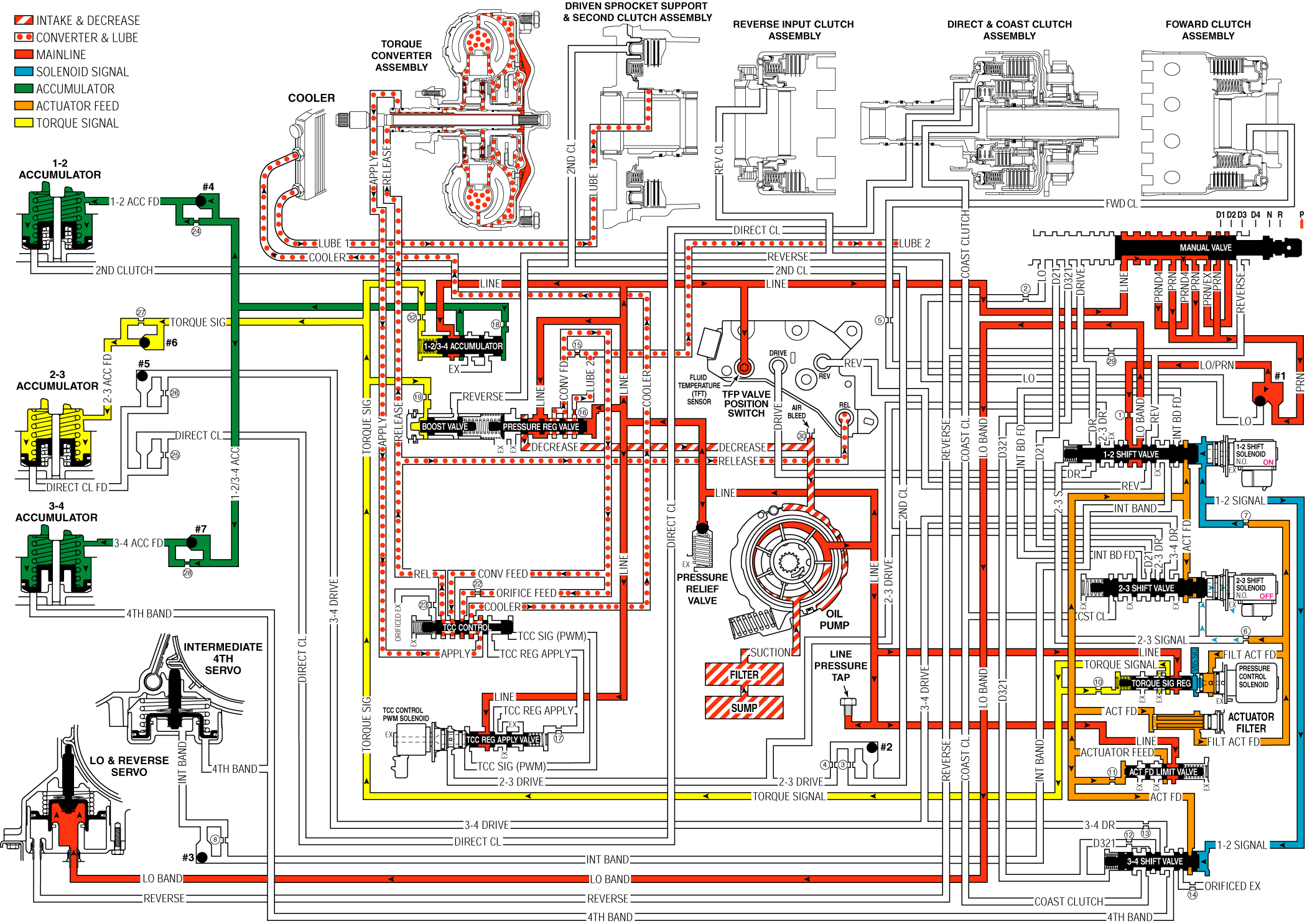

Fig 1: Park - Engine Running - Without Electronic Range Select Mode
GM1205829Courtesy of GENERAL MOTORS CORP.
