2-3 Shift Valve

WARNING: This page is about a different variant/trim than selected.

A spring force keeps the 2-3 shift valve in the downshifted position. In this position the valve blocks 2-3 drive fluid, in preparation for the upshift into Third gear.

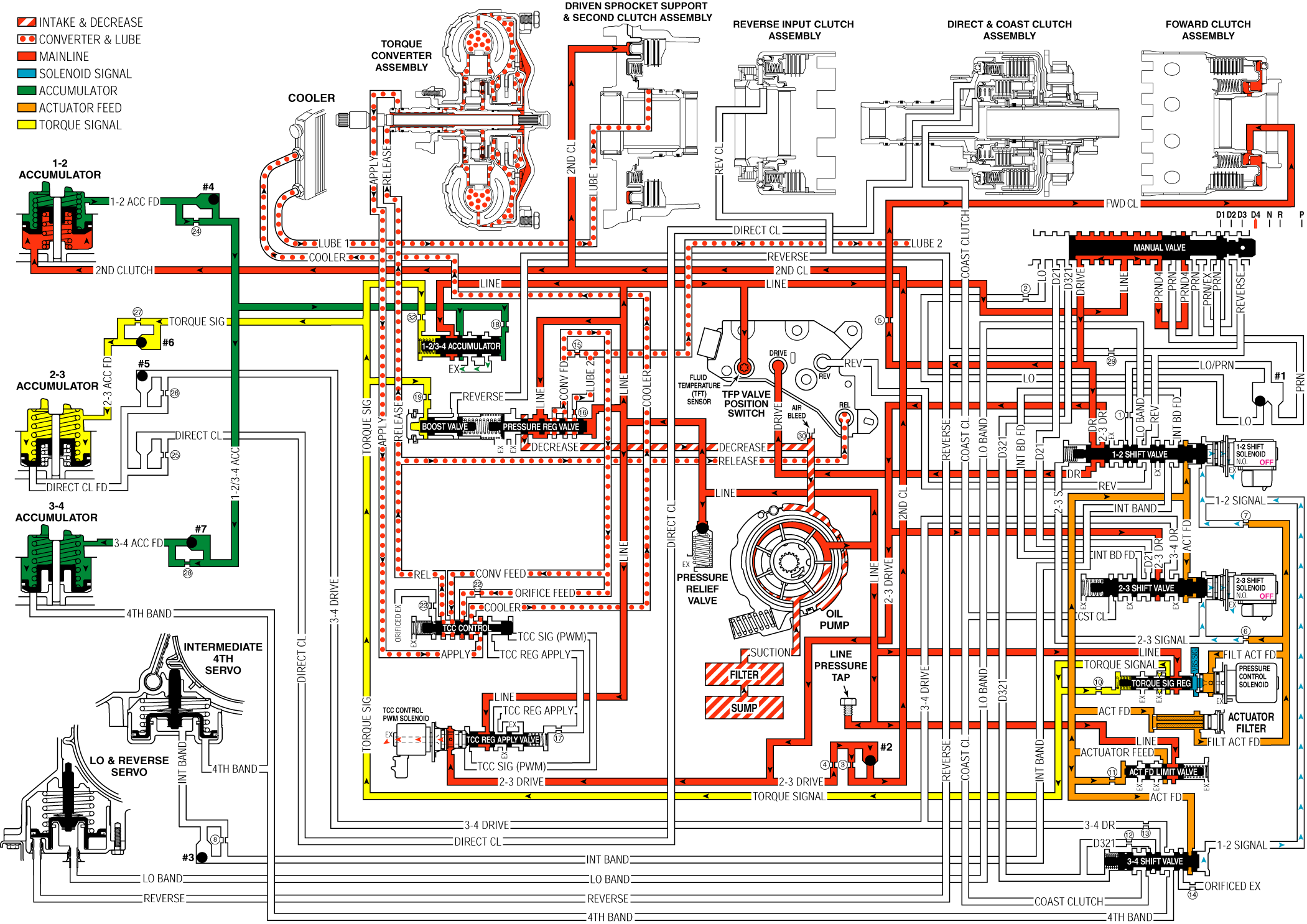

Fig 1: Overdrive Range, Second Gear - Without Electronic Range Select Mode
GM1205849Courtesy of GENERAL MOTORS CORP.
