Torque Converter Clutch

WARNING: This page is about a different variant/trim than selected.

The PCM will release the TCC before downshifting into Manual Second. The TCC will not reapply in Second gear under normal operating conditions.

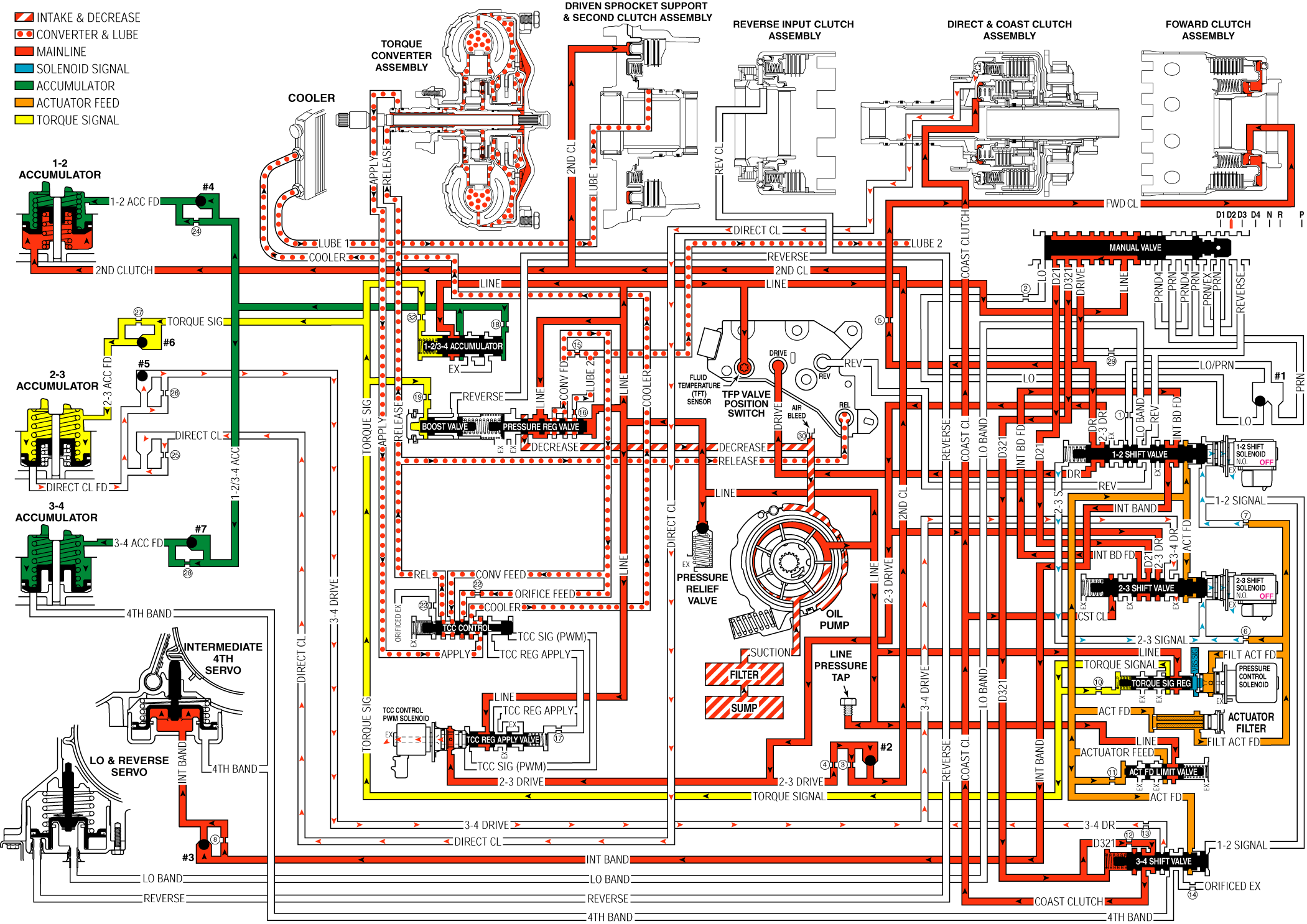

Fig 1: Drive Range, Manual 2nd (from Drive, Manual 3rd) - Without Electronic Range Select Mode
GM1205865Courtesy of GENERAL MOTORS CORP.
