Automatic Transmission Fluid Pressure Switch, Wiring Harness Side

WARNING: This page is about a different variant/trim than selected.

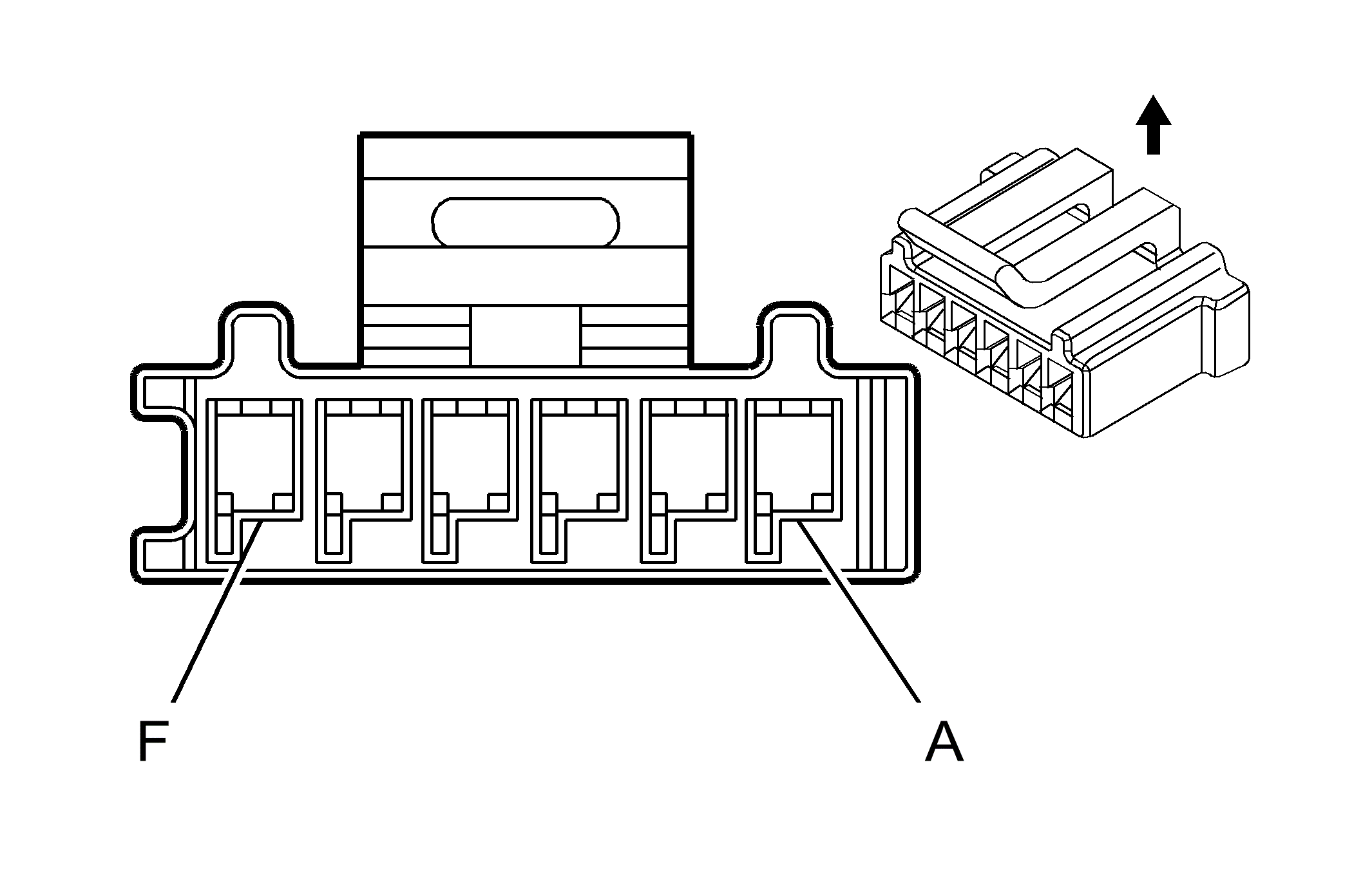

Fig 1: Automatic Transmission Fluid Pressure Switch, Wiring Harness Side Connector End View
GM73215Courtesy of GENERAL MOTORS CORP.
Automatic Transmission Fluid Pressure Switch, Wiring Harness Side Connector Parts Information

Connector Part Information
  • OEM: 12146095
  • Service:
  • Description: 6-Way F M/P 150.2 Series P2S (NA)
Terminal Part Information
  • Terminal/Tray:
  • Core/Insulation Crimp:
  • Release Tool/Test Probe:
Automatic Transmission Fluid Pressure Switch, Wiring Harness Side Connector Terminal Identification

Pin Wire Color Circuit No. Function
A - - Not Used
B D-BU 1225 TFP Switch Signal B
C OG 1226 TFP Switch Signal C
D WH 1804 Torque Converter Clutch Release Switch Signal
E BN 1227 Transmission Fluid Temperature (TFT) Sensor Signal
F GY 452 Low Reference
