2-3 Shift Solenoid (SS) Valve, Wiring Harness Side

WARNING: This page is about a different variant/trim than selected.

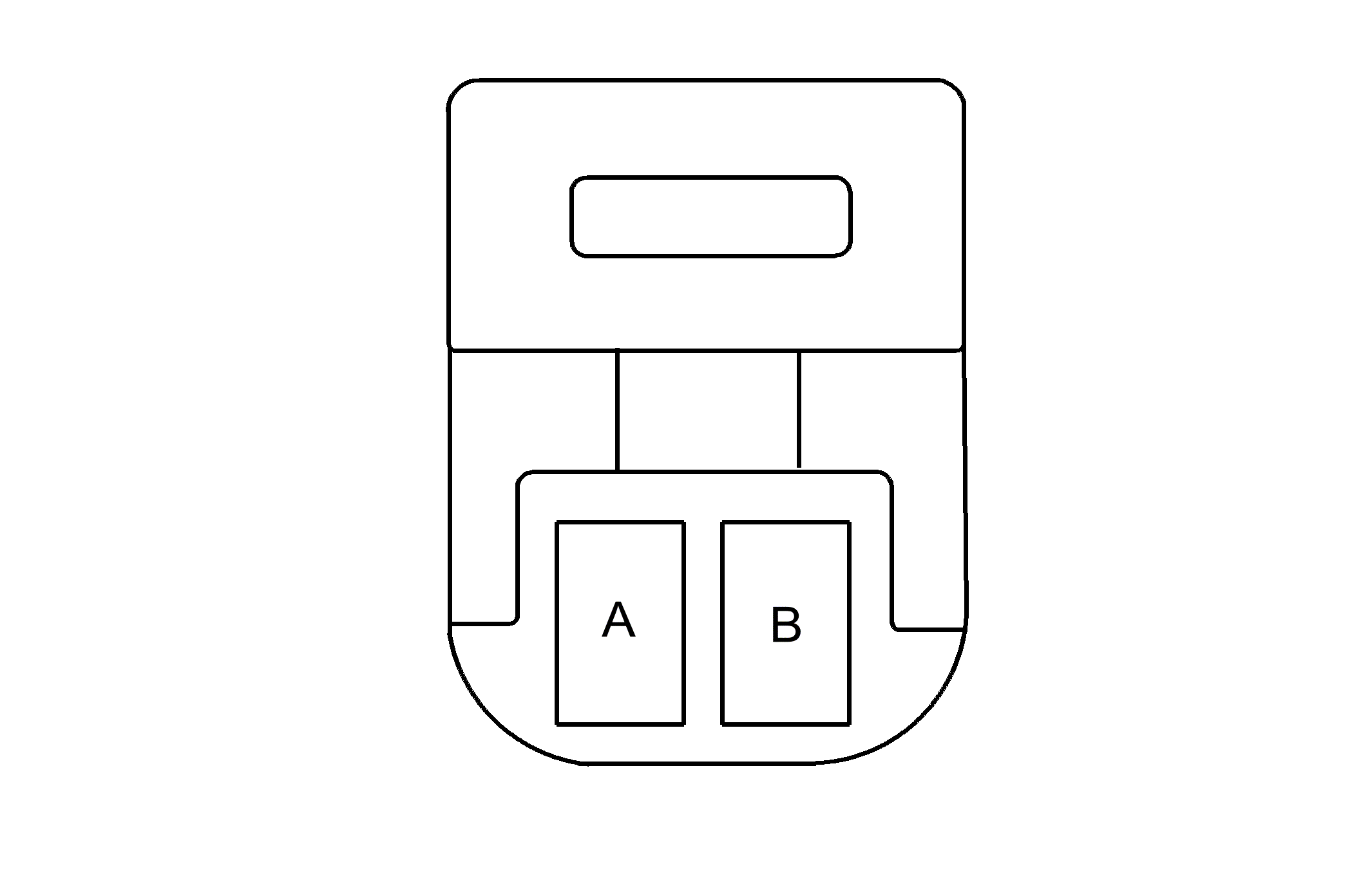

Fig 1: 2-3 Shift Solenoid (SS) Valve, Wiring Harness Side Connector End View
GM82337Courtesy of GENERAL MOTORS CORP.
2-3 Shift Solenoid (SS) Valve, Wiring Harness Side Connector Parts Information

Connector Part Information
  • OEM:12162201
  • Service:
  • Description: 2-Way F M/P 150.2 Series P2S (NA)
Terminal Part Information
  • Terminal/Tray:
  • Core/Insulation Crimp:
  • Release Tool/Test Probe:
2-3 Shift Solenoid (SS) Valve, Wiring Harness Side Connector Terminal Identification

Pin Wire Color Circuit No. Function
A RD 839 Ignition 1 Voltage
B YE 1223 2-3 Shift Solenoid Valve Control
