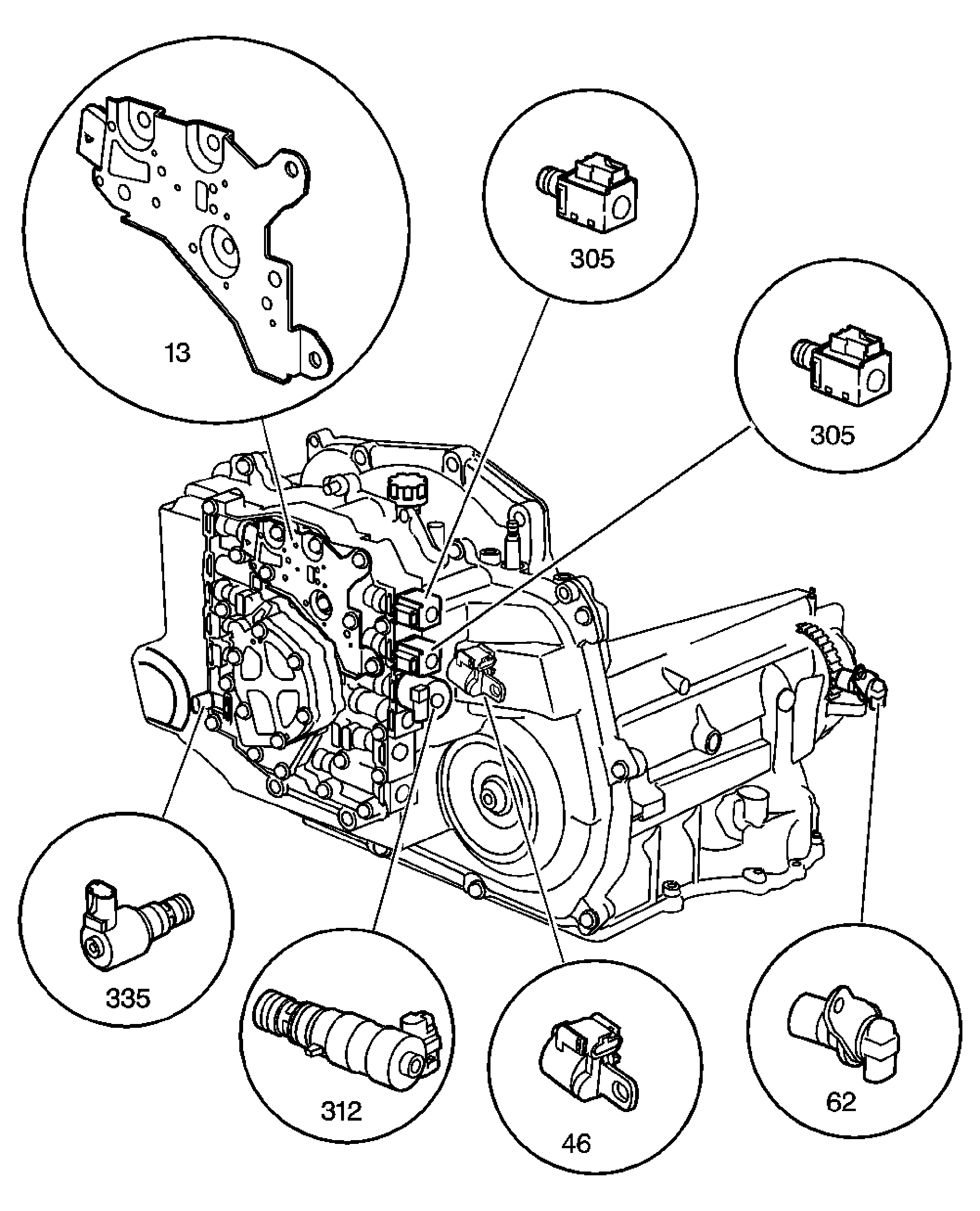

Automatic Transmission Electronic Component Views
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 13 |
TFP Manual Valve Position Switch Assembly |
| 46 |
Input Speed Sensor |
| 62 |
Output Speed Sensor |
| 305 |
1-2 and 2-3 Shift Solenoid Valves |
| 305 |
1-2 and 2-3 Shift Solenoid Valves |
| 312 |
Pressure Control Solenoid |
| 335 |
TCC Control PWM Solenoid |
