Installation Procedure

WARNING: This page is about a different variant/trim than selected.

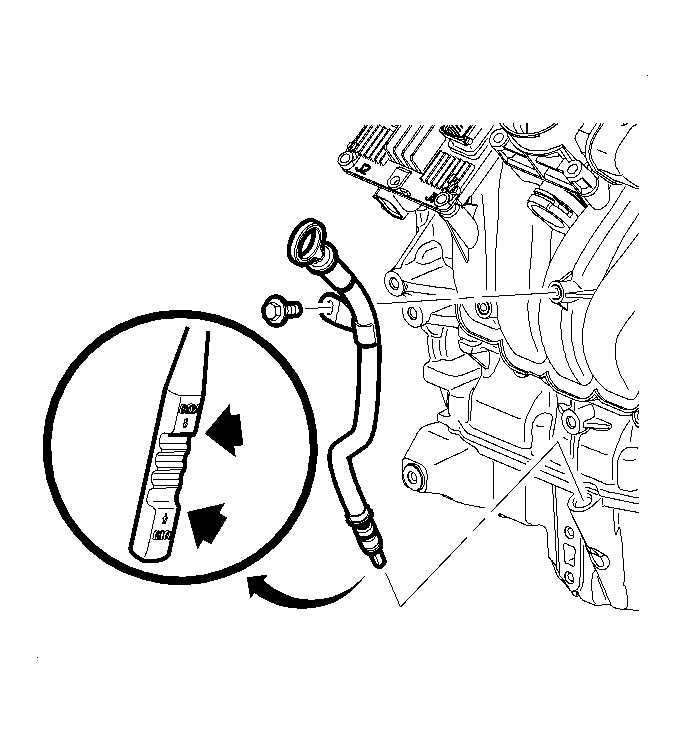

    Fig 1: Oil Level Indicator Tube
    GM897585Courtesy of GENERAL MOTORS CORP.
  1. Install the oil level indicator tube into the block.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the oil level indicator tube bolt to the intake manifold.

    Tighten:  Tighten the oil indicator tube assembly bolt - L61 to 10 N.m (89 lb in).
