Water Pump Removal

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Engine Coolant Temperature Sensor
    GM746068Courtesy of GENERAL MOTORS CORP.
  1. Remove the engine coolant temperature sensor.

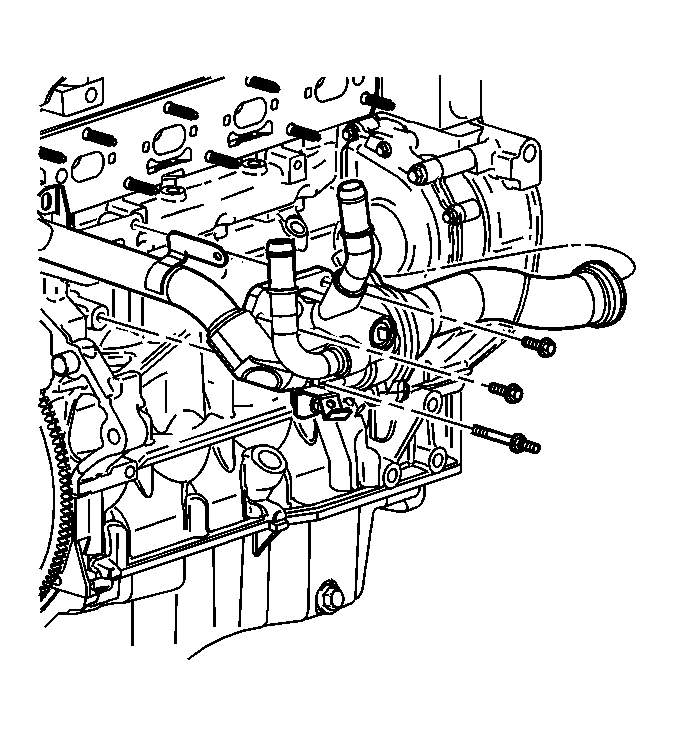

    2. Fig 2: View Of Thermostat Housing & Water Feed Pipe
    GM746070Courtesy of GENERAL MOTORS CORP.
  2. Remove the thermostat and water feed pipe retaining bolts.
    3. IMPORTANT: Twist the water feed pipe while pulling to remove it from the water pump cover.
  3. Remove the thermostat housing and water feed pipe from the water pump cover.
    4. Fig 3: View Of Water Pump Assembly
    GM412423Courtesy of GENERAL MOTORS CORP.
  4. Remove the water pump retaining bolts. Be sure to remove the bolt that goes through the front of the engine block.
  5. Remove the water pump assembly.
