Water Pump Installation

Prior to installing the water pump, read the entire procedure. Pay special attention to avoid part damage and to ensure proper sealing.

Fig 1: View Of Water Pump Assembly
Courtesy of GENERAL MOTORS CORP.
1. Install the water pump assembly.
2. Install the water pump bolts. Finger tighten the bolts.
NOTE: Refer to Fastener Notice in Cautions and Notices.
3. Tighten the water pump bolts.

   Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

4. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the water pump drain plug.
5. Install the water pump drain plug, if necessary.

   Tighten:  Tighten the water pump drain plug to 20 N.m (15 lb ft).

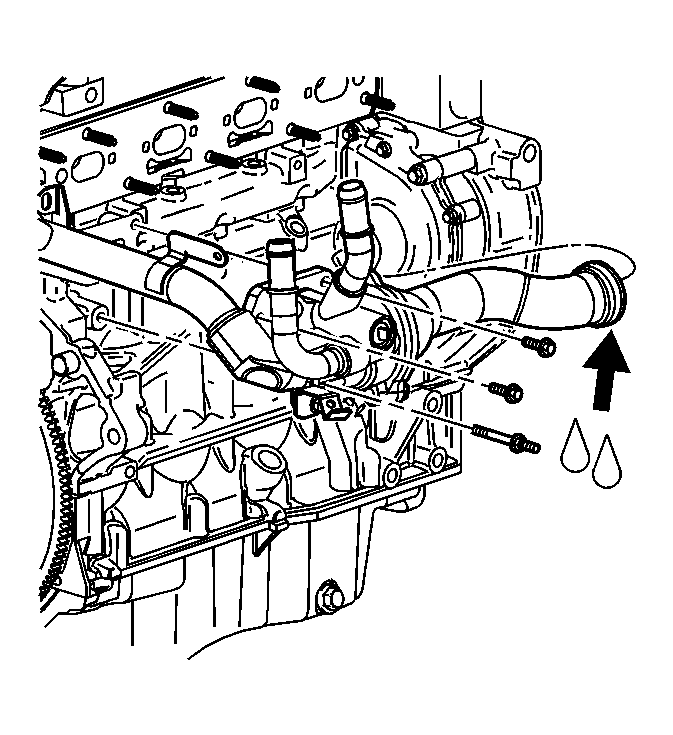

Fig 2: View Of Water Feed Tube
Courtesy of GENERAL MOTORS CORP.
6. Install the water feed tube.
7. Lubricate the feed tube O-Ring with antifreeze.
8. Install the water feed tube by twisting and pushing toward the water pump. Take care not to tear or damage the O-Ring.
9. Install the thermostat housing to block bolts.

   Tighten:  Tighten the bolts to 10 N.m (89 lb in).

   Fig 3: View Of Engine Coolant Temperature Sensor

   Courtesy of GENERAL MOTORS CORP.
10. Install the engine coolant temperature sensor by hand.
11. Tighten the engine coolant temperature sensor.

    Tighten:  Tighten the engine coolant temperature sensor to 20 N.m (15 lb ft).
