Oil Pan Installation

WARNING: This page is about a different variant/trim than selected.

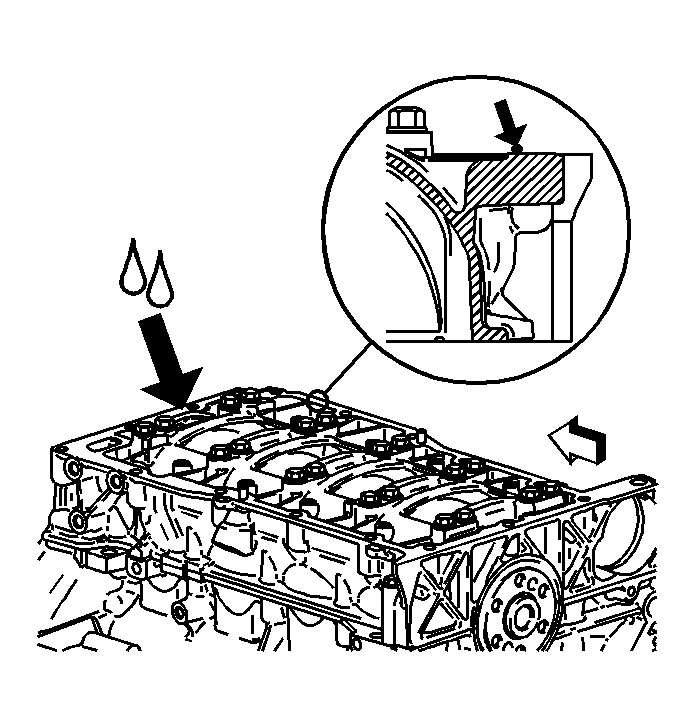

    Fig 1: Applying RTV Around Perimeter Of Oil Pan & Oil Suction Port Opening
    GM412541Courtesy of GENERAL MOTORS CORP.
  1. Make sure that the oil pan and mounting surface on the lower crankcase are free of all oil and debris.
  2. Apply a 3.5 mm bead of GM P/N 12378521 (Canadian P/N 88901148) or equivalent around the perimeter of the oil pan and the oil suction port opening.

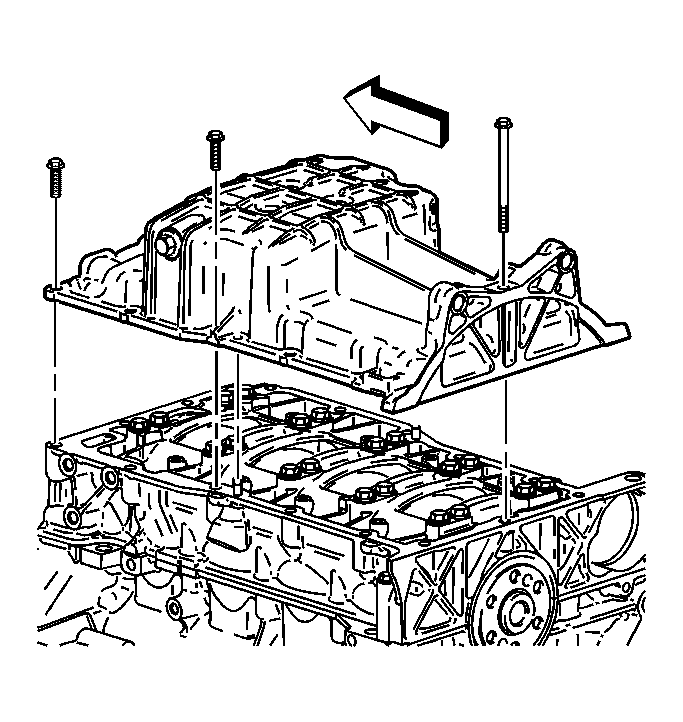

    3. Fig 2: View Of Oil Pan
    GM412429Courtesy of GENERAL MOTORS CORP.
  3. Install the oil pan.
    4. Fig 3: Identifying Oil Pan Bolts Removal & Tightening Sequence
    GM466580Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices
  4. Install the oil pan bolts hand tight.

    Tighten:  Tighten the oil pan bolts to 25 N.m (18 lb ft) in sequence.
