Special Tools

WARNING: This page is about a different variant/trim than selected.

Special Tools

Illustration	Tool Number/ Description
Courtesy of GENERAL MOTORS CORP.	GE 41415-50 Fuel Tank Cap Adapter
Courtesy of GENERAL MOTORS CORP.	J 23738-A Mityvac
Courtesy of GENERAL MOTORS CORP.	J 26792 HEI Spark Tester
Courtesy of GENERAL MOTORS CORP.	J 34730-1A Fuel Pressure Gage
Courtesy of GENERAL MOTORS CORP.	J 34730-405 Injector Test Lamp
Courtesy of GENERAL MOTORS CORP.	J 35616 GM-Approved Terminal Test Kit

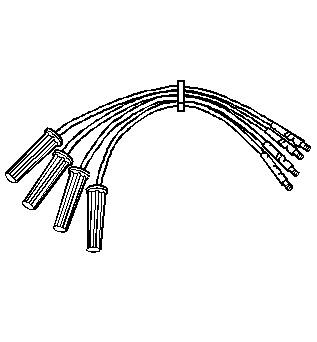

Courtesy of GENERAL MOTORS CORP.	J 36012-A Ignition System Diagnostic Harness
Courtesy of GENERAL MOTORS CORP.	J 39021 Fuel Injector Coil and Balance Tester
Courtesy of GENERAL MOTORS CORP.	J 39194-C Oxygen Sensor Wrench
Courtesy of GENERAL MOTORS CORP.	J 41413-200 Evaporative Emissions System Tester (EEST)
Courtesy of GENERAL MOTORS CORP.	J 41413-VLV EVAP Service Port Vent Fitting
Courtesy of GENERAL MOTORS CORP.	J 43937 Fuel Pressure Adapter Lines
Courtesy of GENERAL MOTORS CORP.	J 44602 Injector Test Adapter
Courtesy of GENERAL MOTORS CORP.	J 44603 Injector Test Lamp
Courtesy of GENERAL MOTORS CORP.	J 45722 Fuel Sender Lock Ring Wrench
Courtesy of GENERAL MOTORS CORP.	SA 9127E Gage Bar Set
Courtesy of GENERAL MOTORS CORP.	SA 9127E-7 Fuel Pressure/Flow Adapter
Courtesy of GENERAL MOTORS CORP.	SA 9156E Fuel Tank Lock Ring Remover
Courtesy of GENERAL MOTORS CORP.	SA 9182E Electronic Fuel Injector Tester
Courtesy of GENERAL MOTORS CORP.	SA 9804E Fuel Tank Drain Hose
Courtesy of GENERAL MOTORS CORP.	SA 9805E Fuel Line Separator
