TAC and APP Sensor Signals Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

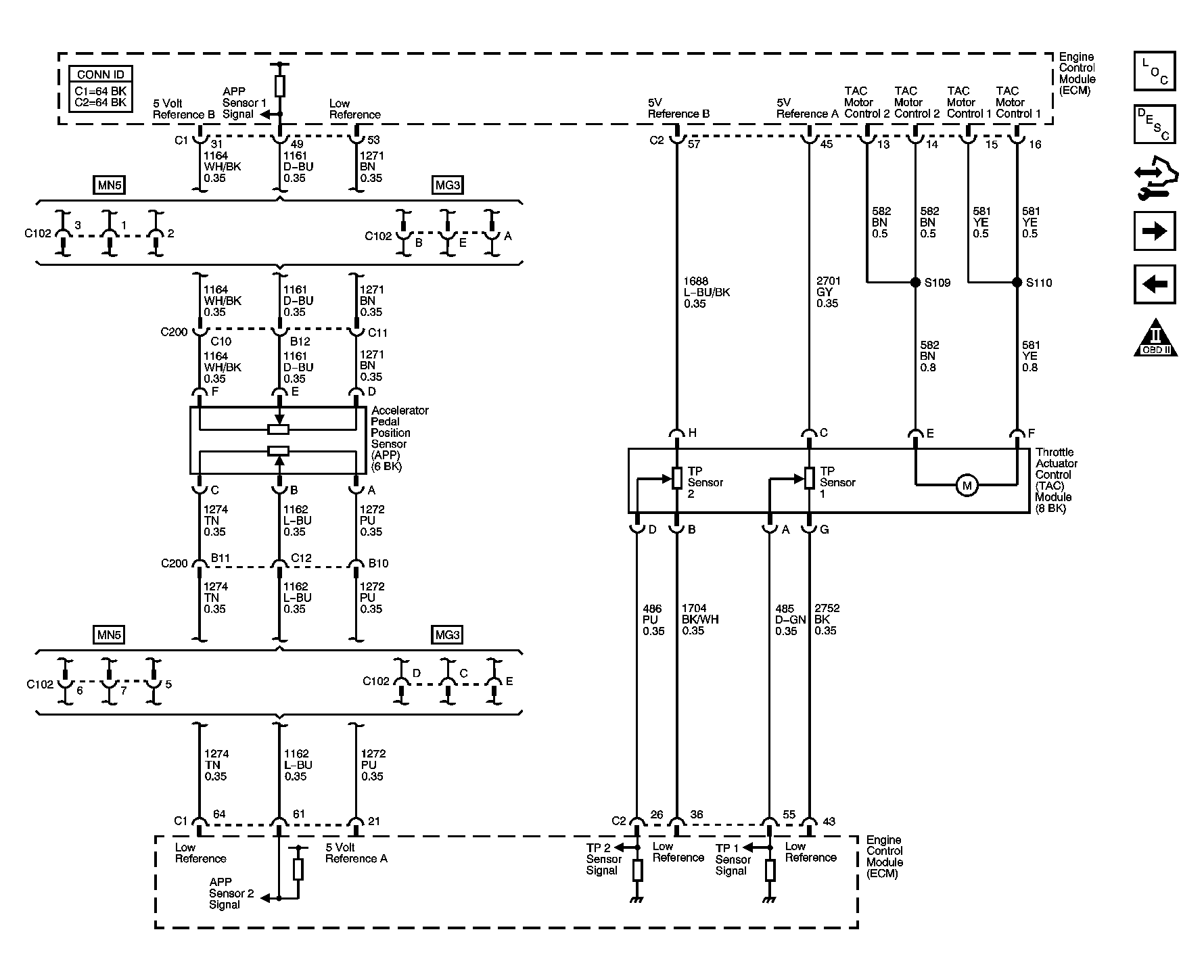

Fig 1: TAC and APP Sensor Signals

GM1615352

Courtesy of GENERAL MOTORS CORP.
