Ignition Controls Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

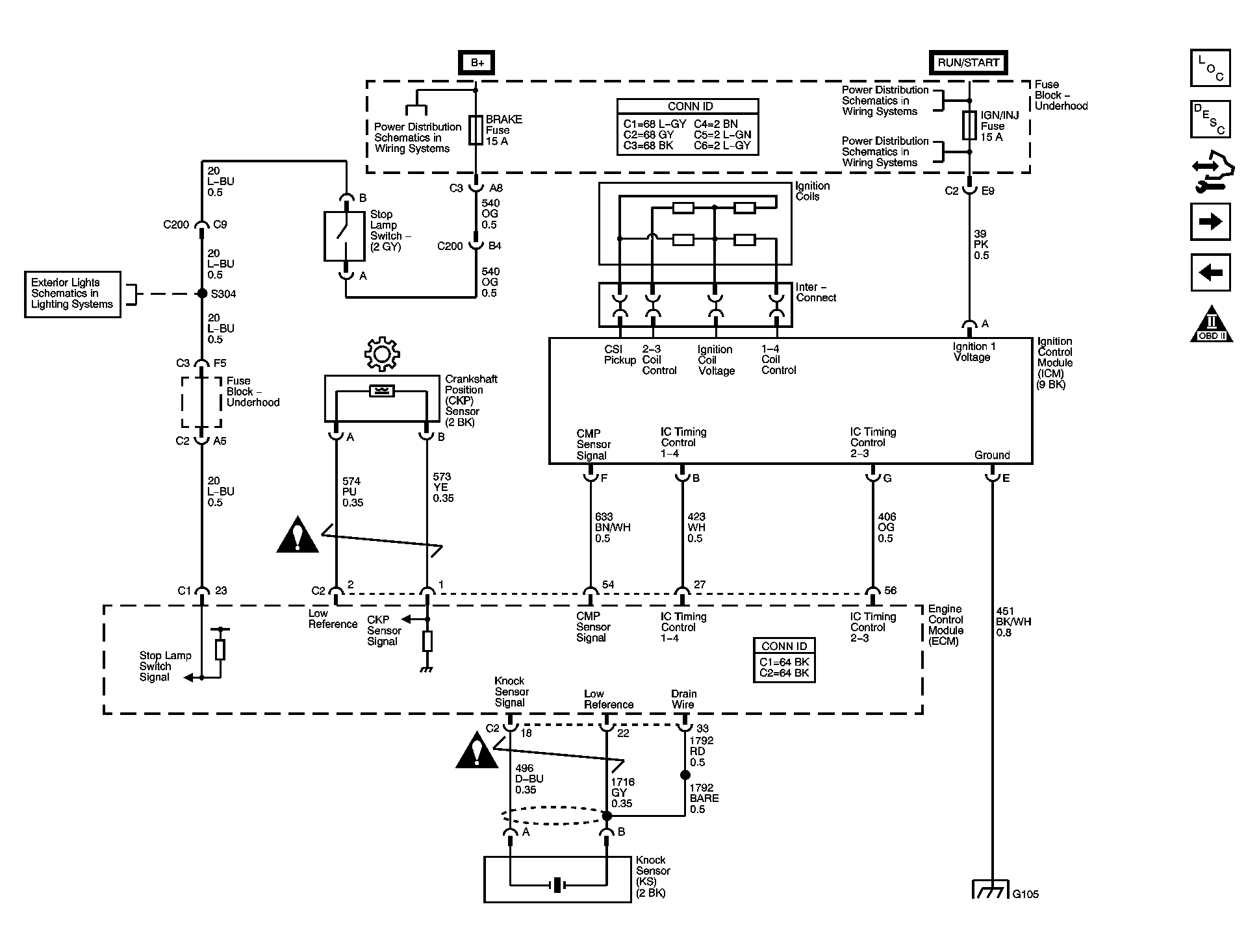

Fig 1: Ignition Controls

GM1583965

Courtesy of GENERAL MOTORS CORP.
