Fuel Controls - Fuel Pump and Fuel Injectors Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

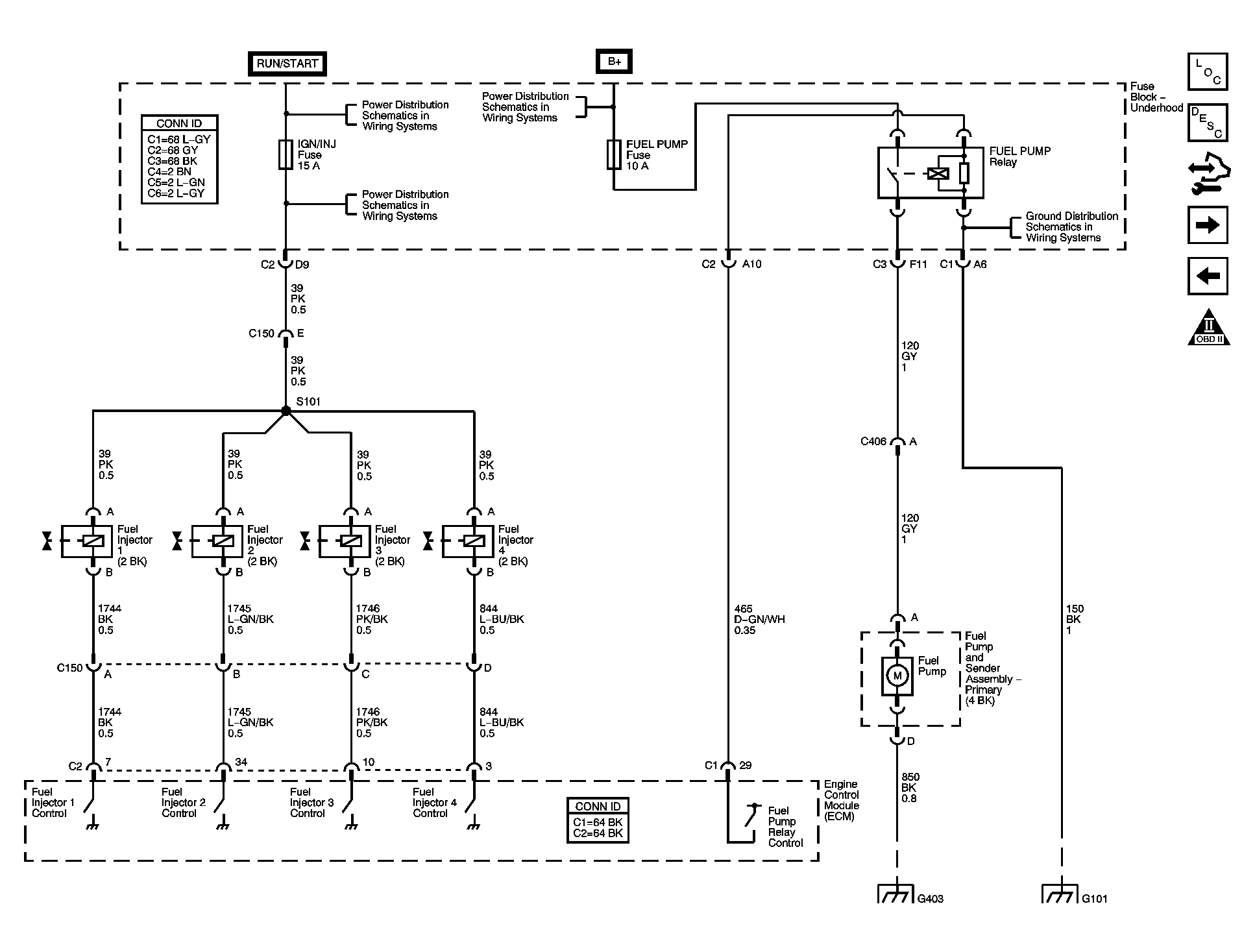

Fig 1: Fuel Controls - Fuel Pump and Injectors
GM1583966Courtesy of GENERAL MOTORS CORP.
