Engine Data Sensors - Pressure and Temperature Signals Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

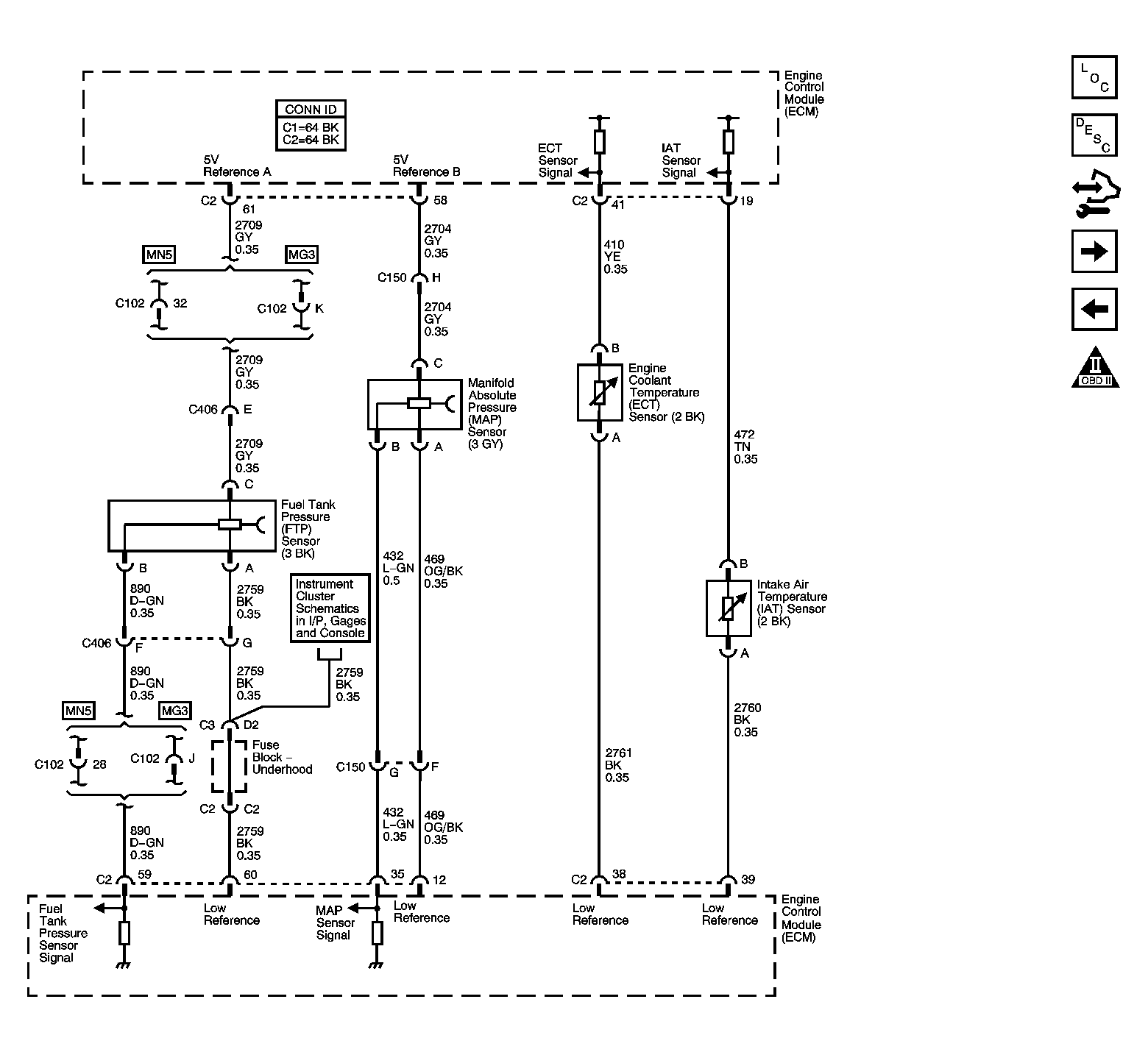

Fig 1: Engine Data Sensors - Pressure and Temperature Signals
GM1583963Courtesy of GENERAL MOTORS CORP.
