Controlled/Monitored Subsystem References Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

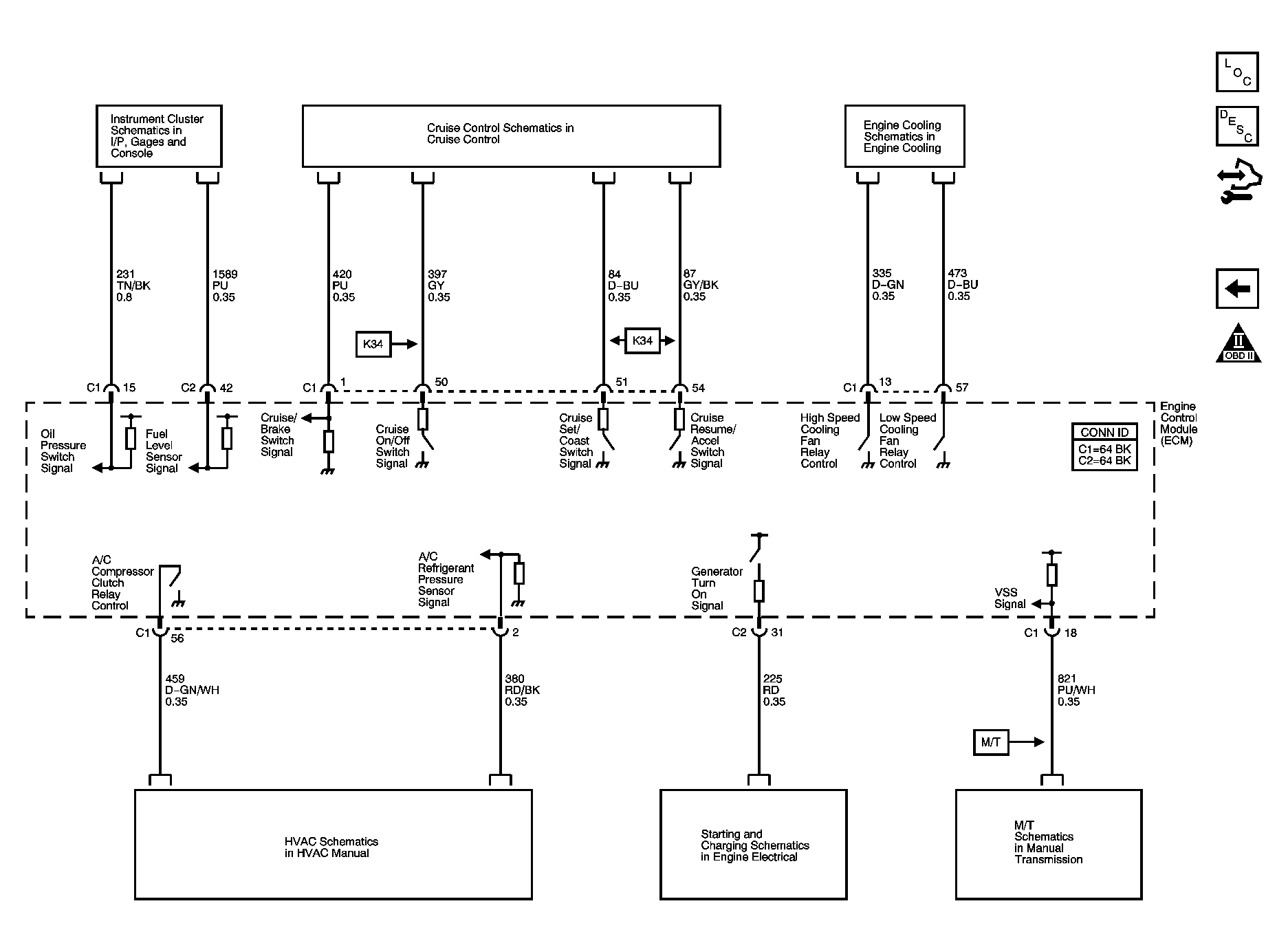

Fig 1: Controlled/Monitored Subsystem References
GM1583968Courtesy of GENERAL MOTORS CORP.
