Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of EVAP Vent Solenoid
    GM932641Courtesy of GENERAL MOTORS CORP.
  1. Install the EVAP vent solenoid by gently turning the solenoid clockwise until it clicks into position.
  2. Connect the EVAP vent solenoid electrical connector.

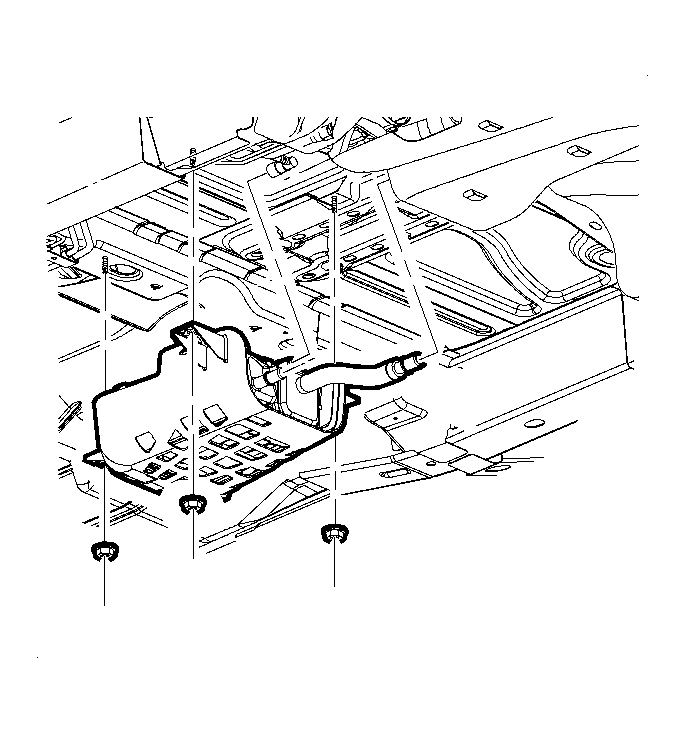

    3. Fig 2: View Of Evaporative Emission Vent Solenoid
    GM927741Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the EVAP canister bracket-to-underbody fasteners.

    Tighten:  Tighten the EVAP canister-to-body nuts to 8 N.m (71 lb in).

  4. Lower the vehicle from the hoist.
